Specifications

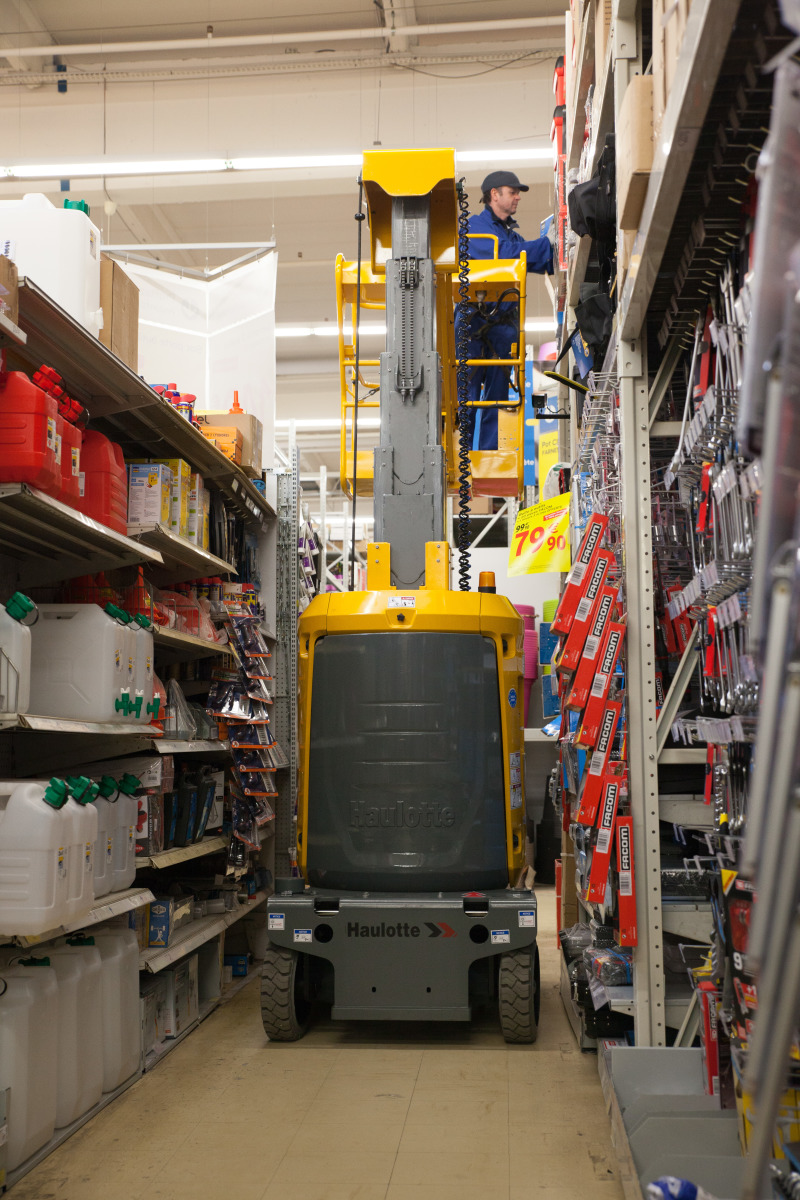

Optimal agility in confined working areas
- Dynamic electric drive AC motors
- Zero tail swing
- 9 ft 10 in outreach with jib
Minimal maintenance and downtime
- Maintenance free brushless AC motors
- Haulotte Activ'Screen (onboard diagnostic)
- Haulotte Activ'Energy Management takes care of your batteries
- Almost 0 battery maintenance : automatic & centralized waterfilling system
Longer lifetime
- Unbreakable hoods in composite material
- Pins, bushes, non-painted parts and fastening hardware are 3 times more durable
Smarter transport
- Versatile and effective transport solutions with forklift tine pockets
- 25% gradeability to easily climb truck ramps
| Working height | 32 ft 1 in |
| Platform height | 26 ft 1 in |
| Horizontal outreach | 9 ft 10 in |
| Lift capacity | 500 lb (2 pers.) |
| Lift capacity - outside | 500 lb (1 pers.) |
| Platform size | 2 ft 7 in x 3 ft 3 in |
| Length | 8 ft 10 in |
| Width | 3 ft 3 in |
| Height - stowed | 6 ft 6 in |
| Tailswing | 0 in |
| Wheelbase | 3 ft 11 in |
| Ground clearance | 4 in |
| Drive speed | 0.4 - 3.1 mph |
| Turning radius - outside | 6 ft 2 in |
| Turntable rotation | 345 ° |
| Tilt alarm | 3 ° |
| Gradeability | 25 % |
| Driveable at full height up to | 26 ft 1 in |
| Tires | 16 x 5 x 10.5 |
| Batteries | 24 V - 250 Ah |
| Weight | 6,400 lb |
| Vertical jib rotation | 130° (+ 70 ° / - 60 °) |
| Hydraulic tank capacity | 2 gal |
- Haulotte Activ'Energy Management: Smart CAN charger
- Automatic centralized battery filling
- 24 V electric drive brushless AC motors
- 24 V – 250 Ah traction batteries
- Battery charge indicator
- Haulotte Activ'Screen on-board diagnostic tool
- Forklift pockets
- Towing hooks and lifting eyes
- Pothole protection
- 2 front steering wheels
- 2 rear driving wheels
- Non-marking tires
- Brake release
- Hourmeter
- Horn
- Emergency stop buttons at platform and ground level
- Load controller in the platform
- Emergency hand pump
- 2 control stations - platform and ground level
- Drop bar entry
- 2 Lanyard attachment points
- Travel alarm
- Haulotte Activ'Shield Bar
- AC Power to the platform (Standard on US machines)
- Air line to the platform
- Swing door entry gate (Standard on US machines)
- Biodegradable oil
- Maintenance-free batteries
- Telematics ready
- Hydraulic oil for cold climates
- Flashing light
- Working light
