Vertical mastsStar 20

  • Vertical masts
  • Electric
  • Even ground
  • Inside use
  • Finishings
  • Logistic / Retail / Industry

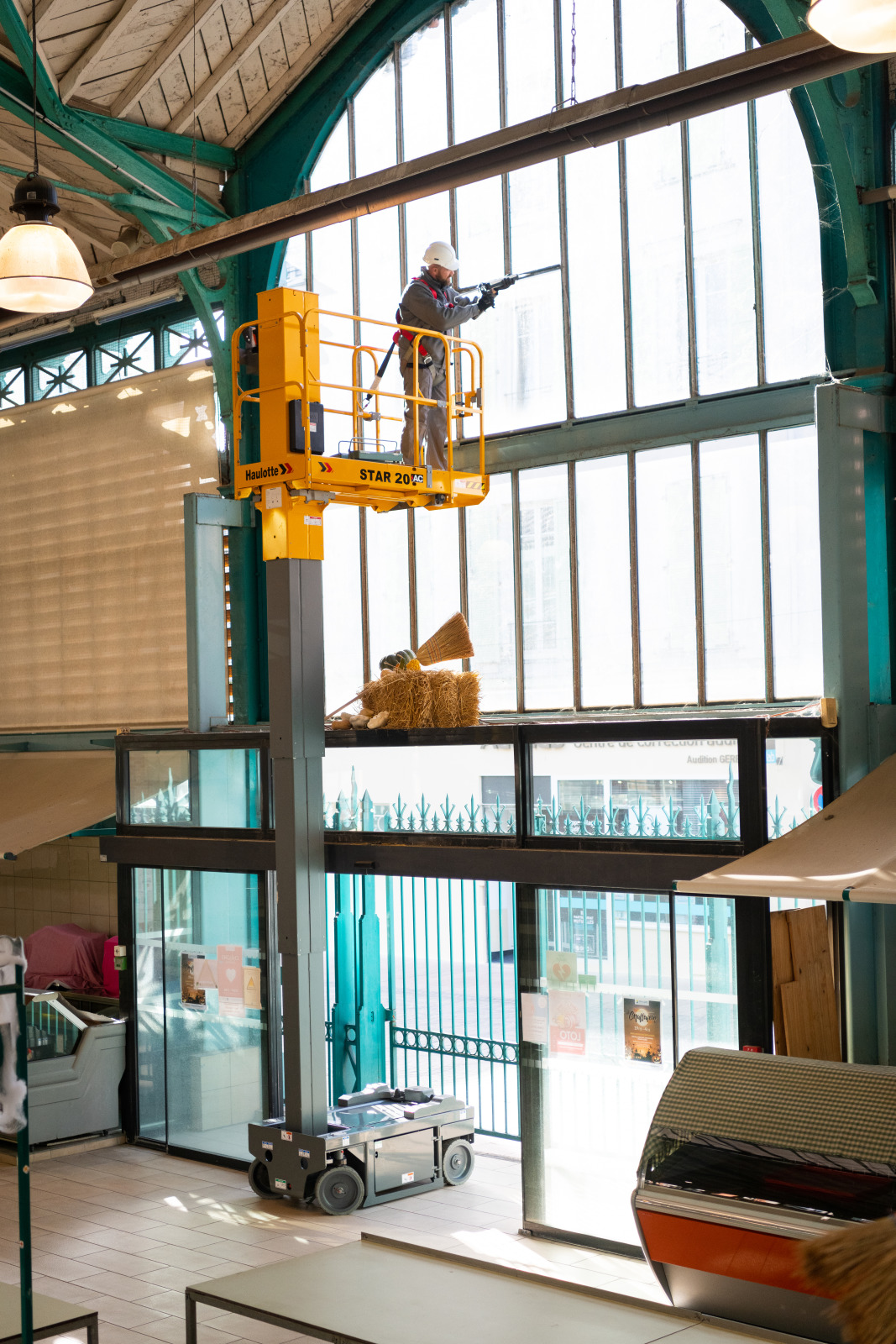

  • Maintenance and restoration
  • Sporting and other events
  • Go everywhere
  • Precision driving and smooth controls
  • Easy access to the platform: dedicated anti-slip step and walkable plinth

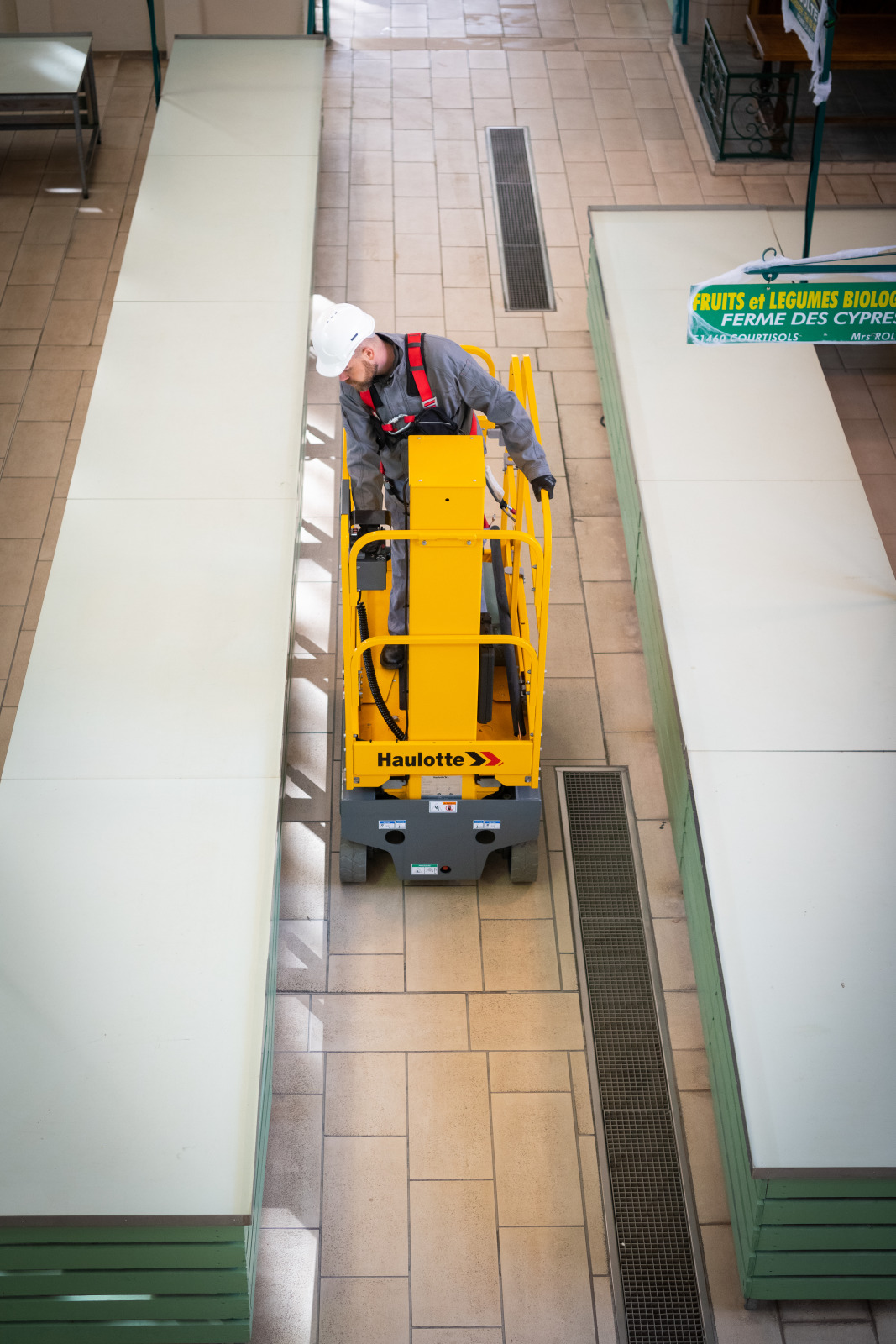

  • Agile machine with mobile pothole protection
  • Intuitive control box with battery charge indicator in platform

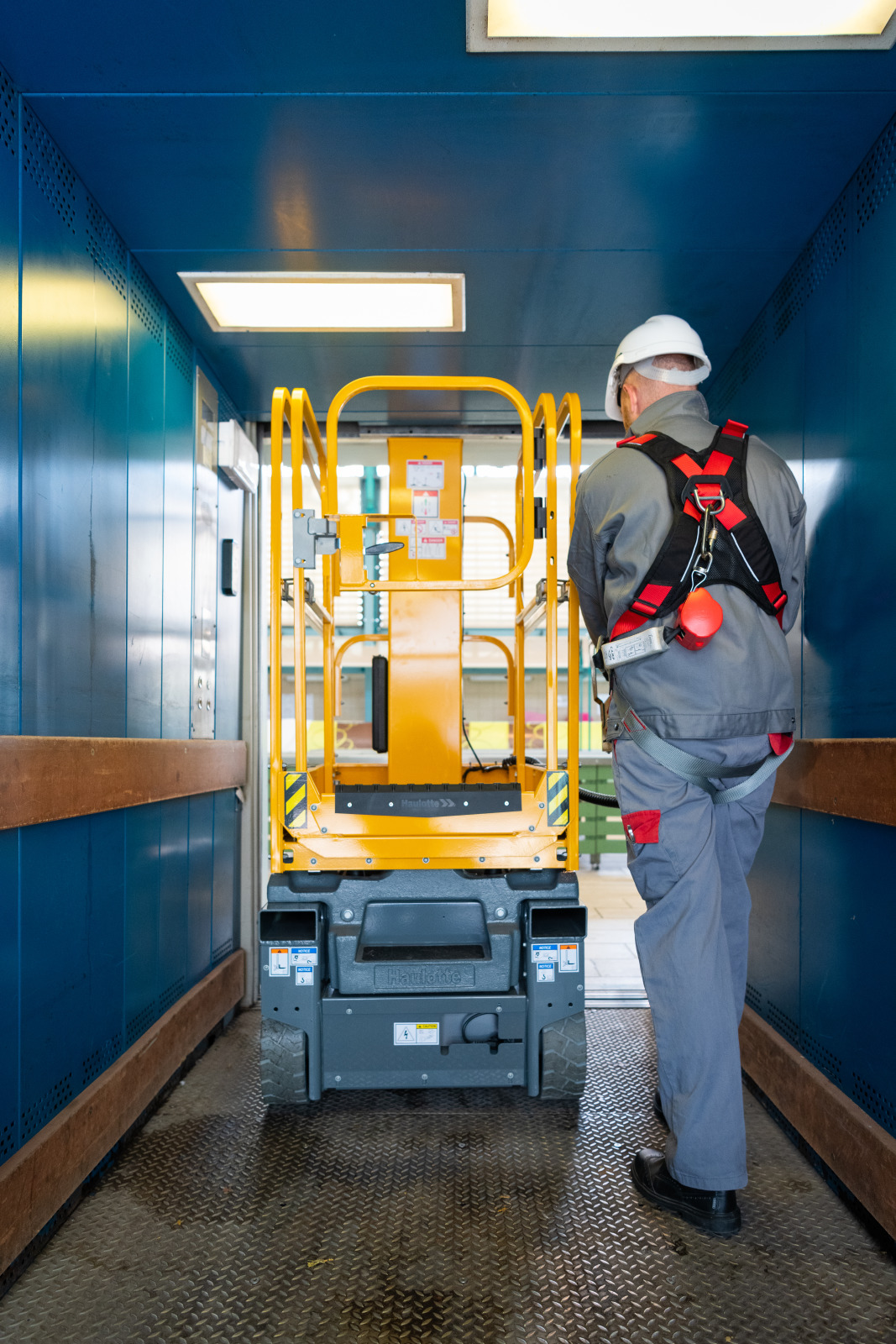

  • Smart transportability & lifting
  • Platform extension deck (+ 16 in)
  • The best value for the money
  • Haulotte Activ'Energy Management takes care of your batteries

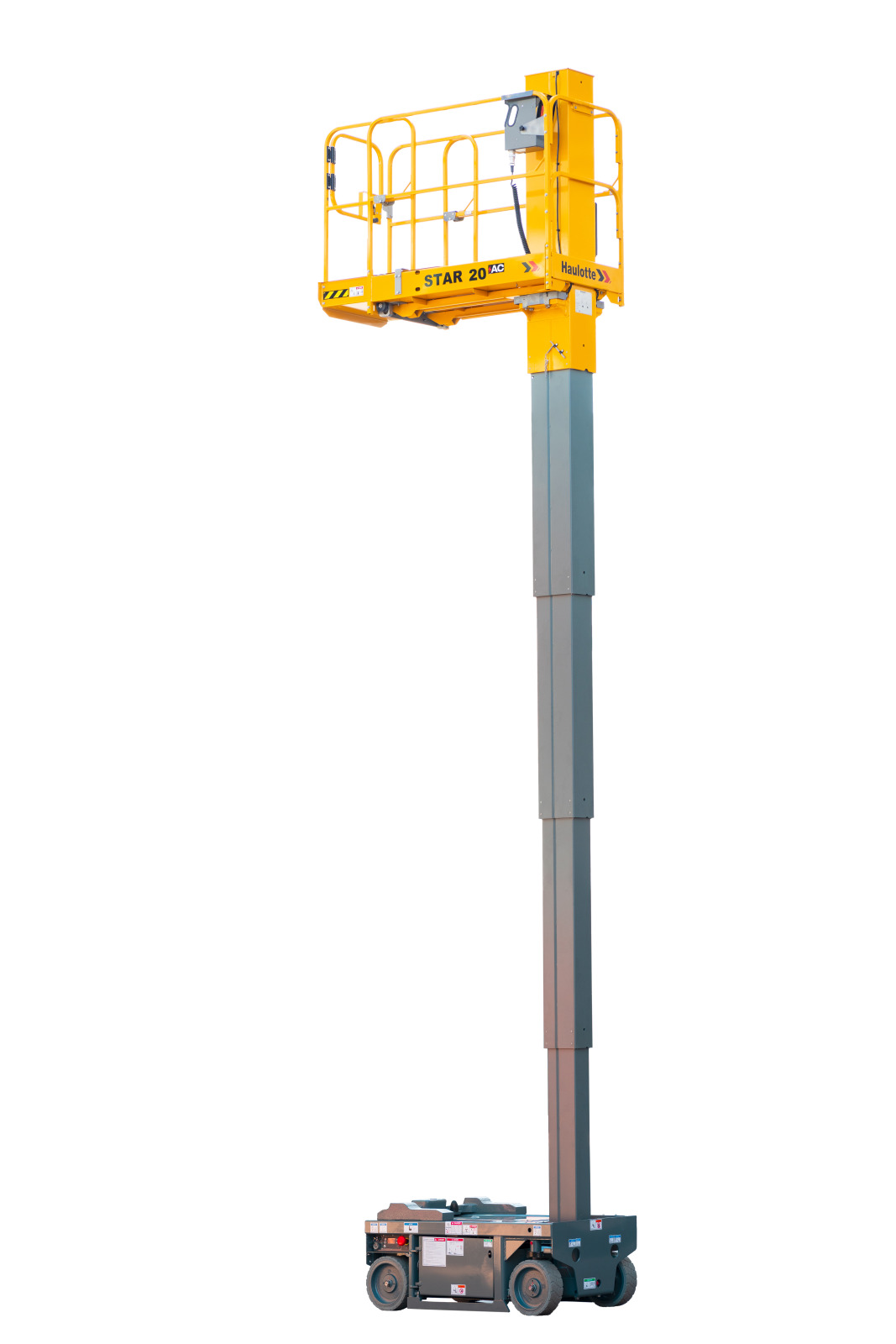

  • 4- stage cylinder mast with no chain or cable
  • Minimal maintenance & downtime
  • Electric drive with brushless AC motors
  • Easy access to components
  • Haulotte Activ'Screen (onboard diagnostics)

Working height 25 ft 8 in
Platform height 19 ft 8 in
Horizontal outreach N/A
Lift capacity 441 lb (1 Pers.)
Platform size 31 in x 54 in
Length 4 ft 7 in
Width 2 ft 7 in
Height - stowed 6 ft 6 in
Wheelbase 3 ft 6 in
Ground clearance 2.36 in
Drive speed 0.5 - 2.8 mph
Turning radius - outside 5 ft 7 in
Tires 13 x 5
Batteries 4 x 6 V - 180 Ah (C5)
Weight 2,580 lb
Tilt alarm 1.5° / 3°
Gradeability 25 %
Driveable at full height up to 19 ft 8 in
Hydraulic tank capacity 1.8 gal
Lift capacity - outside N/A
Platform size with extension 31 in x 71 in
  • Haulotte Activ'Energy Management: Smart CAN charger
  • Haulotte Activ'Screen
  • 24 V electric drive brushless AC motors
  • 2 x 12 V - 105 Ah batteries
  • Battery charge indicator
  • Fork lift pockets
  • Lifting eyes
  • Swing door entry gate with lock
  • Platform extension + 16 in
  • Mobile pothole protection
  • 2 rear steering wheels
  • 2 front driving wheels
  • Non-marking tires
  • Brake release
  • Hourmeter
  • Horn
  • Travel alarm
  • Emergency hand pump
  • Lowering system
  • 2 control stations - in the basket and at ground level
  • Mobile upper control box
  • High speed selector on upper control box
  • Towing hooks
  • Haulotte Activ'Energy Management: automatic or manual battery waterfilling systems
  • Telematics ready
  • Maintenance-free batteries
  • Flashing beacon
  • Power to the platform
  • Tool tray
  • Upper control box cover
  • Ground-fault circuit interrupter 30 mA
  • Hydraulic oil for cold climates
  • Biodegradable oil
