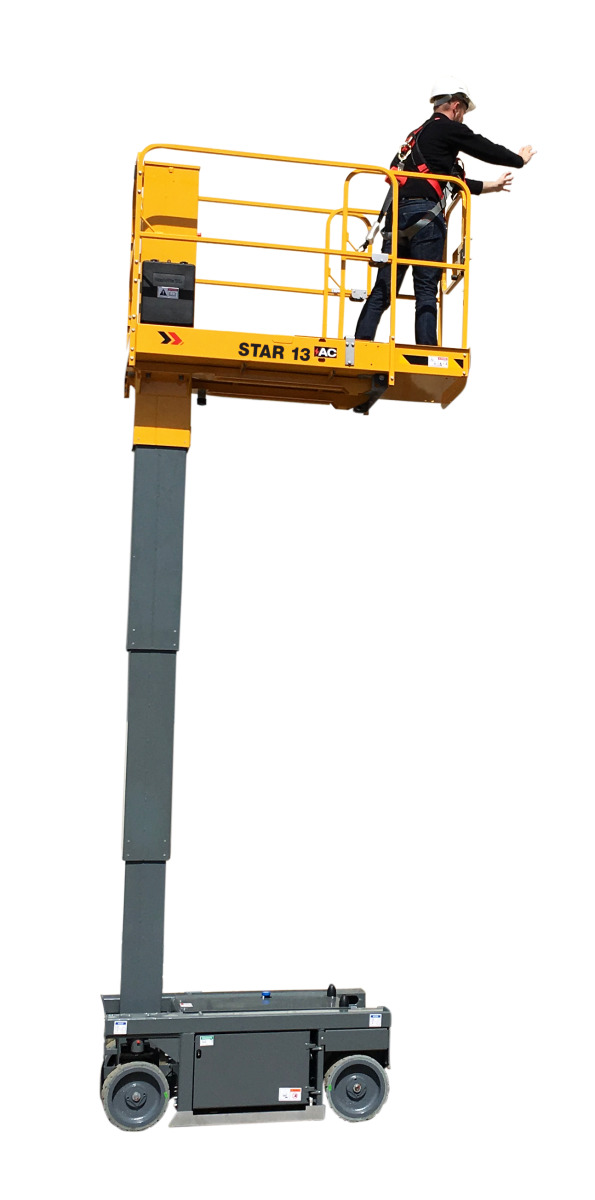

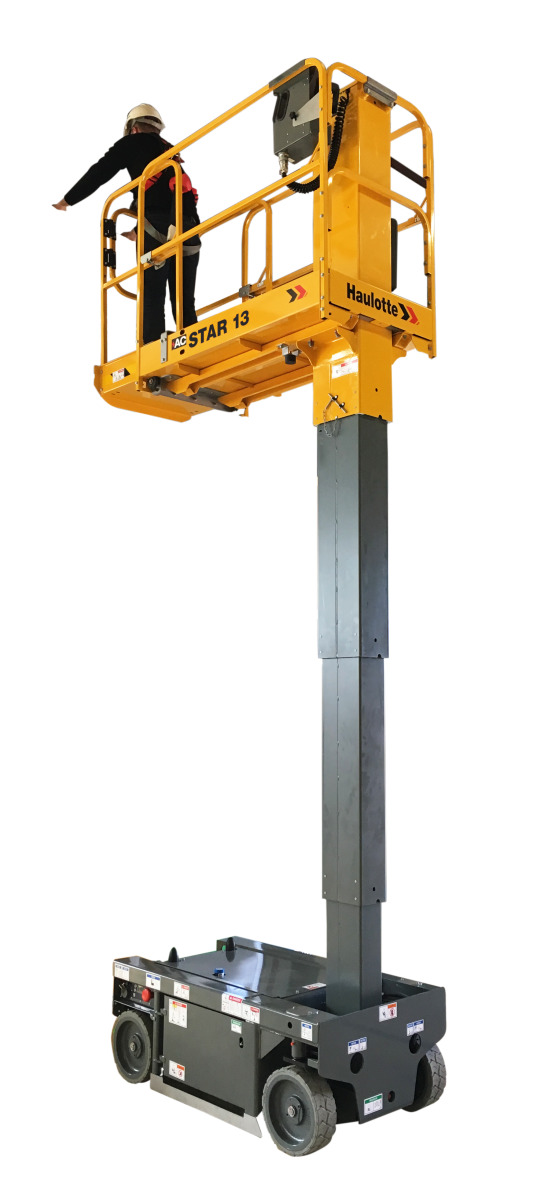

Vertical mastsStar 13

  • Vertical masts
  • Electric
  • Even ground
  • Inside use
  • Finishings
  • Logistic / Retail / Industry
  • Maintenance and restoration
  • Sporting and other events
  • Go everywhere
  • Smooth & precise driving
  • Comfort & agility
  • Indoor / outdoor rated (versatile)
  • Easy entry to the platform
  • Smart transportability and lifting
  • The best value for the money
  • Haulotte Activ'Energy Management takes care of your batteries
  • Smart mast system
  • Minimal maintenance & downtime
  • Direct electric drive brushless AC motor
  • Easy access to components
  • Haulotte Activ'Screen (onboard diagnostics)

Compare

Working height 18 ft 6 in
Platform height 12 ft 6 in
Horizontal outreach N/A
Lift capacity 507 lb (2 pers.)
Platform size 2 ft 6 in x 4 ft 6 in
Length 4 ft 7 in
Width 2 ft 7 in
Height - stowed 5 ft 11 in
Wheelbase 3 ft 6 in
Ground clearance 2.36 in
Drive speed 0.5 - 2.8 mph
Turning radius - outside 5 ft 7 in
Tires 13 x 5
Batteries 12 V - 105 Ah (C5)
Weight 2,006 lb
Tilt alarm 1.5 ° / 3 °
Gradeability 25 %
Driveable at full height up to 12 ft 6 in
Lift capacity - outside 507 lb (1 pers.)
Platform size with extension (option) 2 ft 6 in x 4 ft 6 in + 16 in

  • Haulotte Activ'Energy Management: Smart CAN charger
  • 24 V electric drive brushless AC motors
  • 2 x 12 V - 105 Ah batteries
  • Battery charge indicator
  • Haulotte Activ'Screen
  • Forklift pockets
  • Hoisting and lifting eyes
  • Saloon door entry gate
  • Mobile pothole protection
  • 2 Front steering wheels
  • 2 Rear drive wheels
  • Non-marking tires
  • Brake release
  • Hourmeter
  • Horn
  • Travel alarm
  • Emergency stop
  • Emergency hand pump
  • 2 control stations at platform and ground level
  • Mobile upper control box
  • 2 towing hooks
  • Walkable entry plinth
  • Overload sensor

  • Haulotte Activ'Energy Management: automatic or manual battery waterfilling systems
  • Upper control box cover
  • Tool tray
  • 16 in platform extension deck (stowed height 5 ft 9.5 in) standard in US & Canada
  • Power to the platform
  • Ground-fault circuit interrupter 30 mA
  • Telematics ready
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
  • Flashing beacon
  • Fluorescent tube caddy
