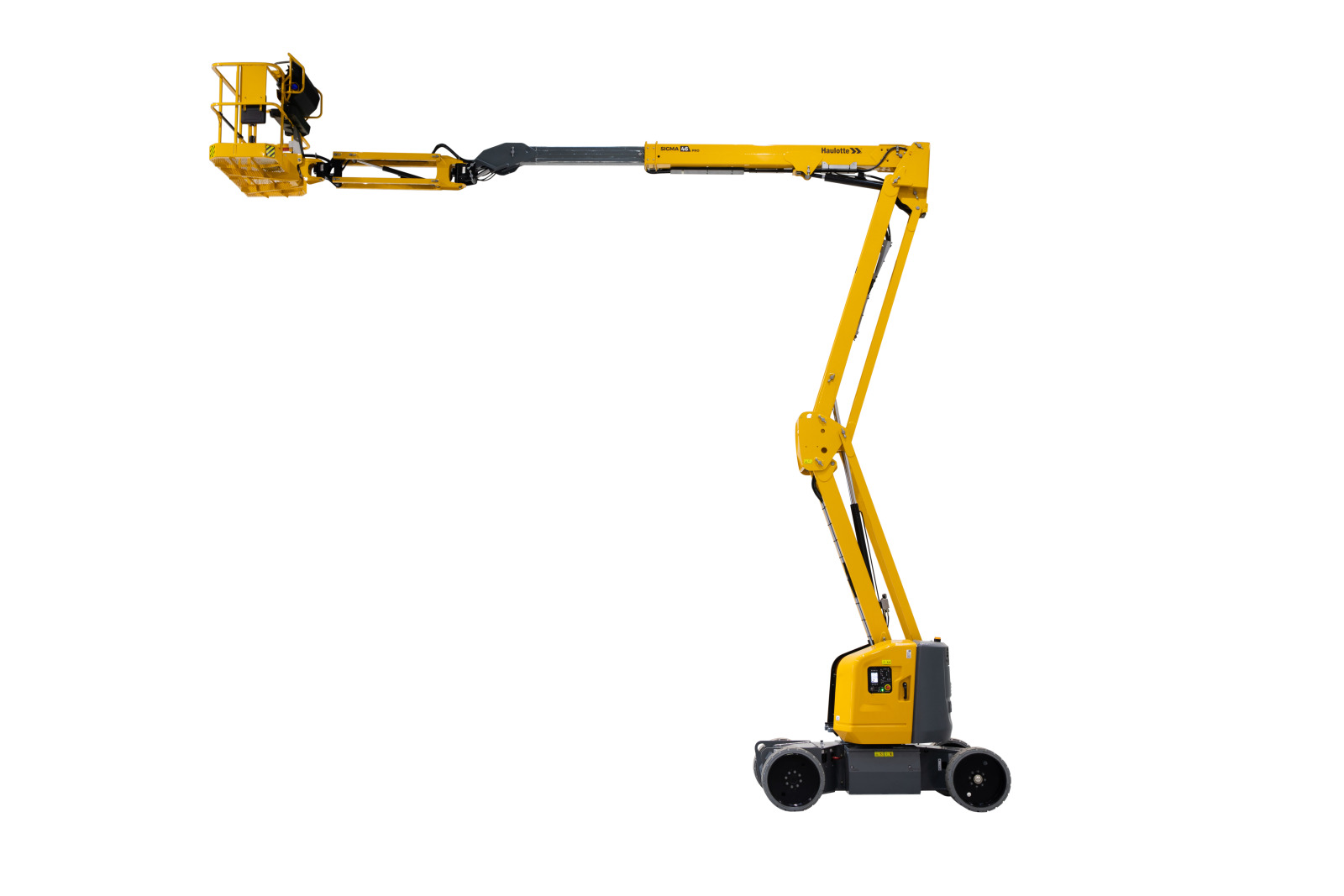

Electric articulating boomsSigma 46 PRO

  • Electric articulating booms
  • Electric
  • Even ground
  • Inside and outside use
  • Finishings
  • Maintenance and restoration
  • Landscaping

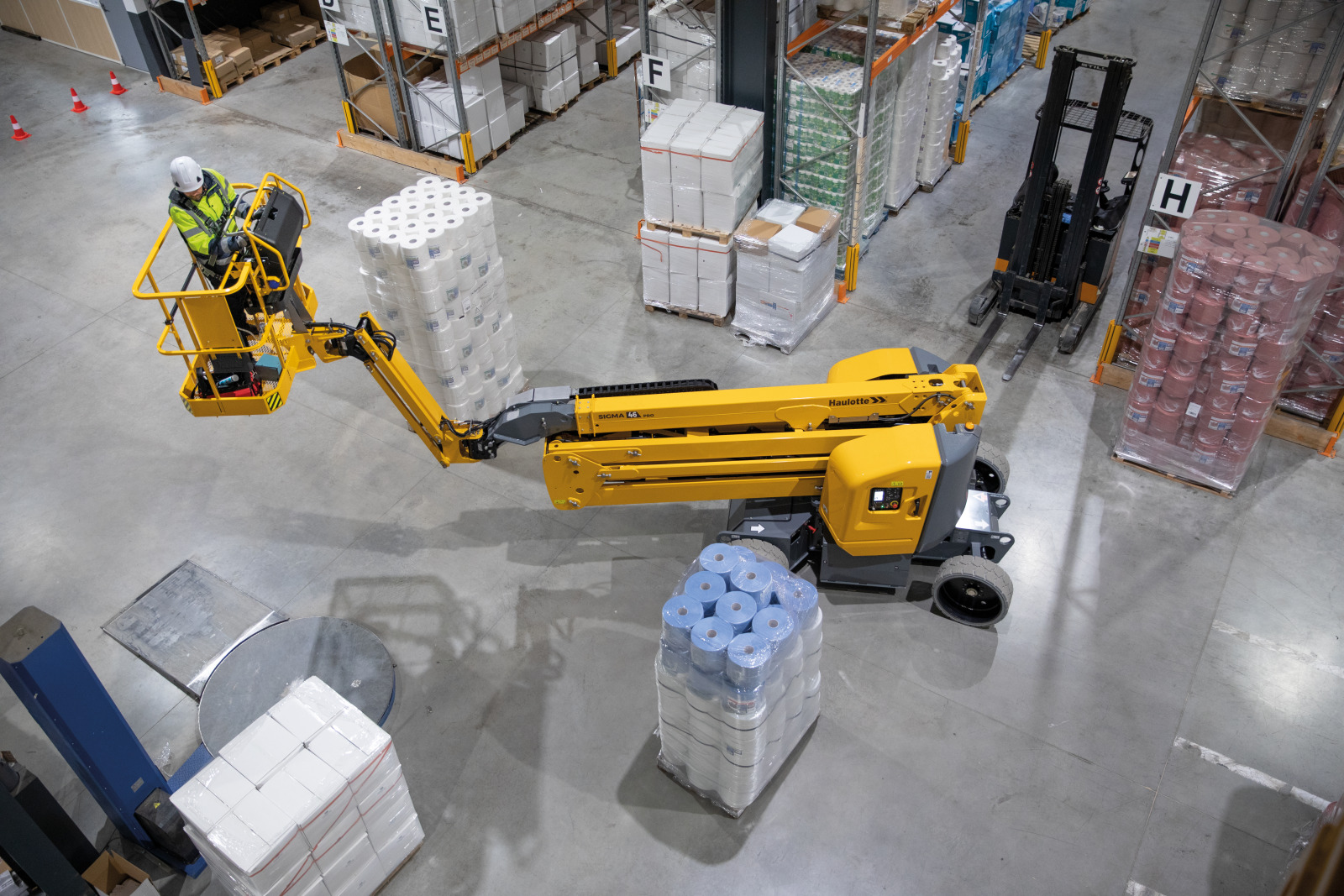

  • Logistics / Retail / Industry
  • Sporting and other events
  • Boost your productivity
  • Best working envelope with the longest outreach and highest up & over clearance
  • Simultaneous movements provide quick access to the work area
  • High load capacity of 500 lb

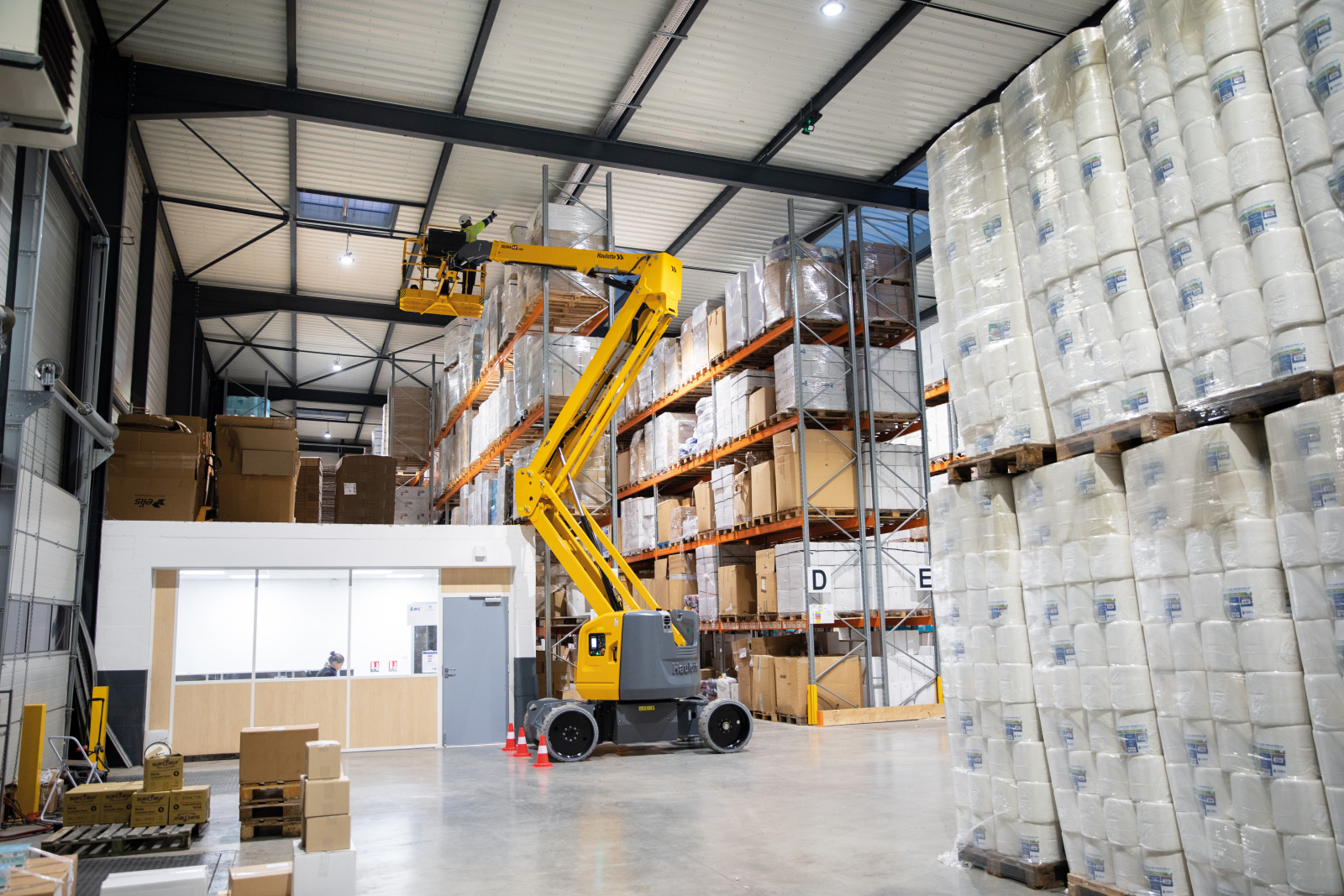

  • Versatility indoor & outdoor on firm surfaces
  • Move with agility
  • Zero tailswing and tight turning radius makes it easy to move in confined spaces

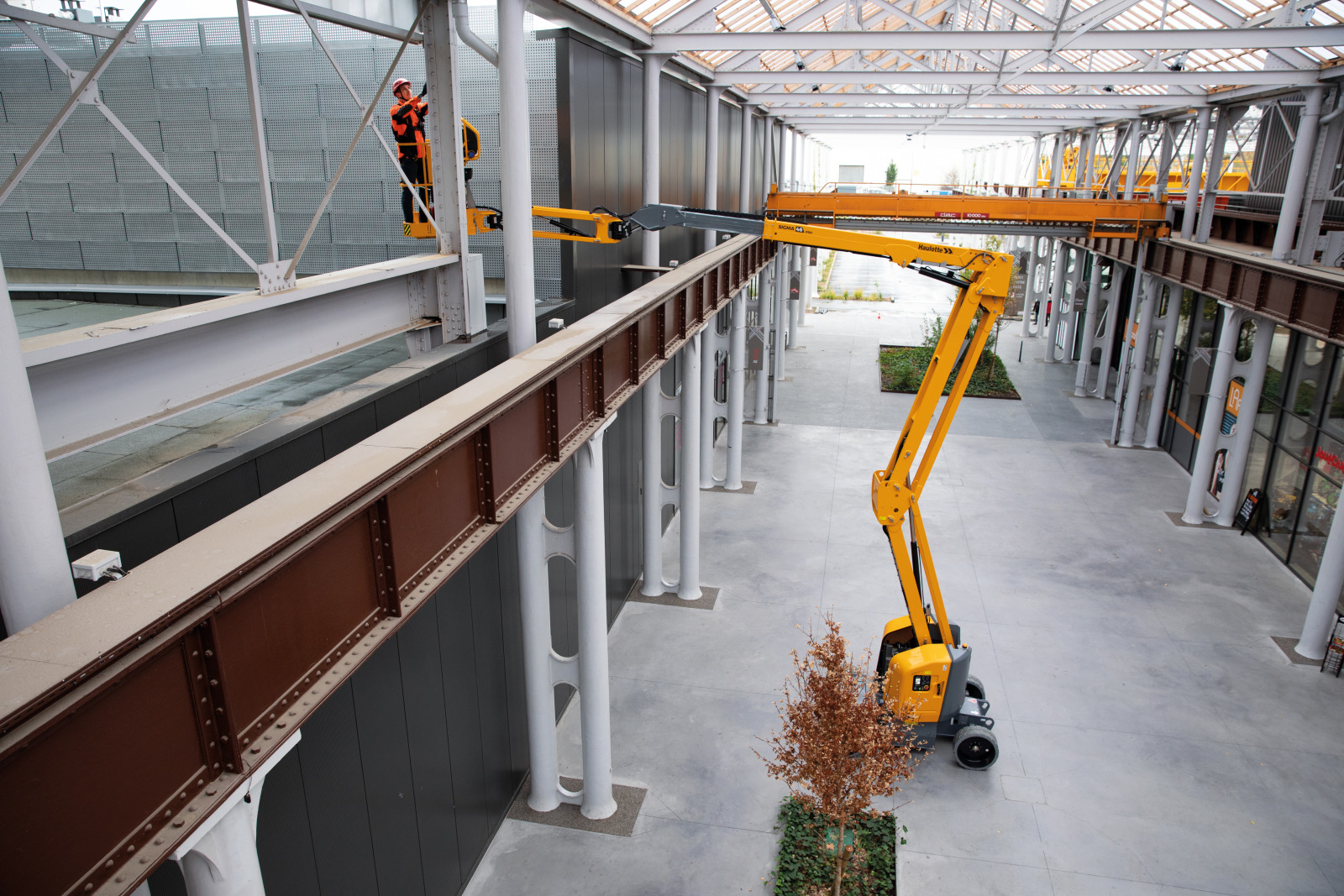

  • Jib with horizontal rotation provides access to the most inaccessible places (PRO model)
  • Precise & smooth movements
  • Reliable serviceability
  • Haulotte Activ'Energy Management takes care of your battery
  • Haulotte Activ’Screen: on-board configuration & diagnostic interface
  • Work safely
  • Haulotte Activ'Shield Bar *
  • Haulotte Activ'Lighting System *

Working height 51 ft 6 in
Platform height 44 ft 11 in
Horizontal outreach 26 ft 5 in
Up and over clearance 24 ft 3 in
Platform size 3 ft 11 in x 2 ft 7 in
Length 21 ft 10 in
Width 5 ft 9 in
Height - stowed 6 ft 7 in
Vertical jib rotation -65° /+65°
Platform rotation -85° /+85°
Turntable rotation 355 °
Wheelbase 6 ft 7 in
Ground clearance 7 in
Tilt alarm 4°/4
Drive speed 3.1 mph
Gradeability 25 %
Turning radius - outside 12 ft 10 in
Tires 27 x 10 in
Weight 15,325 lb
Horizontal jib rotation -55° /+55°
Tailswing 0 in
Lift capacity 500 lb
Length - transport 21 ft 10 in
Batteries 8 x 6 V - 435 Ah (C20)
Maximum wind speed rating 28 mph
  • 3D horizontal jib (PRO model)
  • 2 wheel drive / 2 wheel steer
  • AC motors
  • 48V battery pack
  • Haulotte Activ'Energy Management: smart battery management system
  • Haulotte Activ'Lighting System for safe loading in low visibility conditions *
  • Haulotte Activ'Shield Bar 2.0 *
  • Haulotte Activ'Screen, embedded diagnostic system, with color screen
  • Upper control box cover *
  • Tool tray *
  • 3 ft 11 in width basket
  • Drop bar entry
  • Large solid, non-marking industrial tires
  • AC power to basket
  • Motion alarm
  • Lockable battery circuit breaker
  • Side swing door + front drop bar
  • 4 ft 9 in basket
  • Basket plug (110 / 230 V)
  • Haulotte Activ'Energy Management : manual or automatic battery water-filling system
  • Cold weather hydraulic oil
  • Fluorescent tube holder
  • Cones holder
  • Telematics solutions
  • USB plug
