Presentation
- Boost your productivity
- Move with agility
- Reliable serviceability
- Work safely
Specifications
Boost your productivity

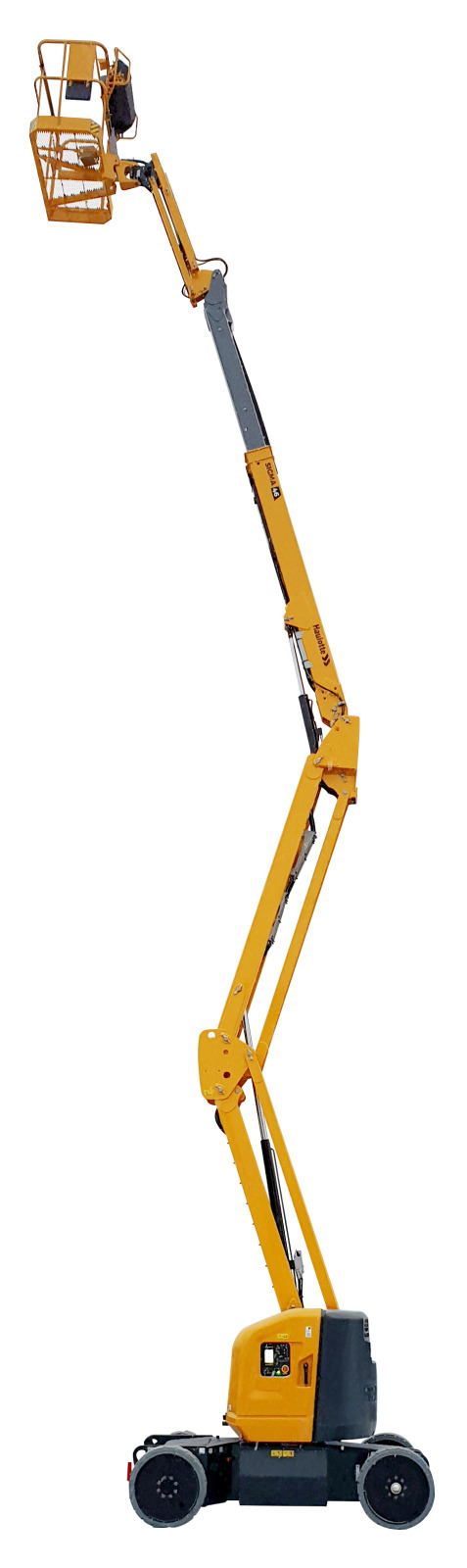

- Best working envelope with the longest outreach and highest up & over clearance
- Simultaneous movements provide quick access to the work area

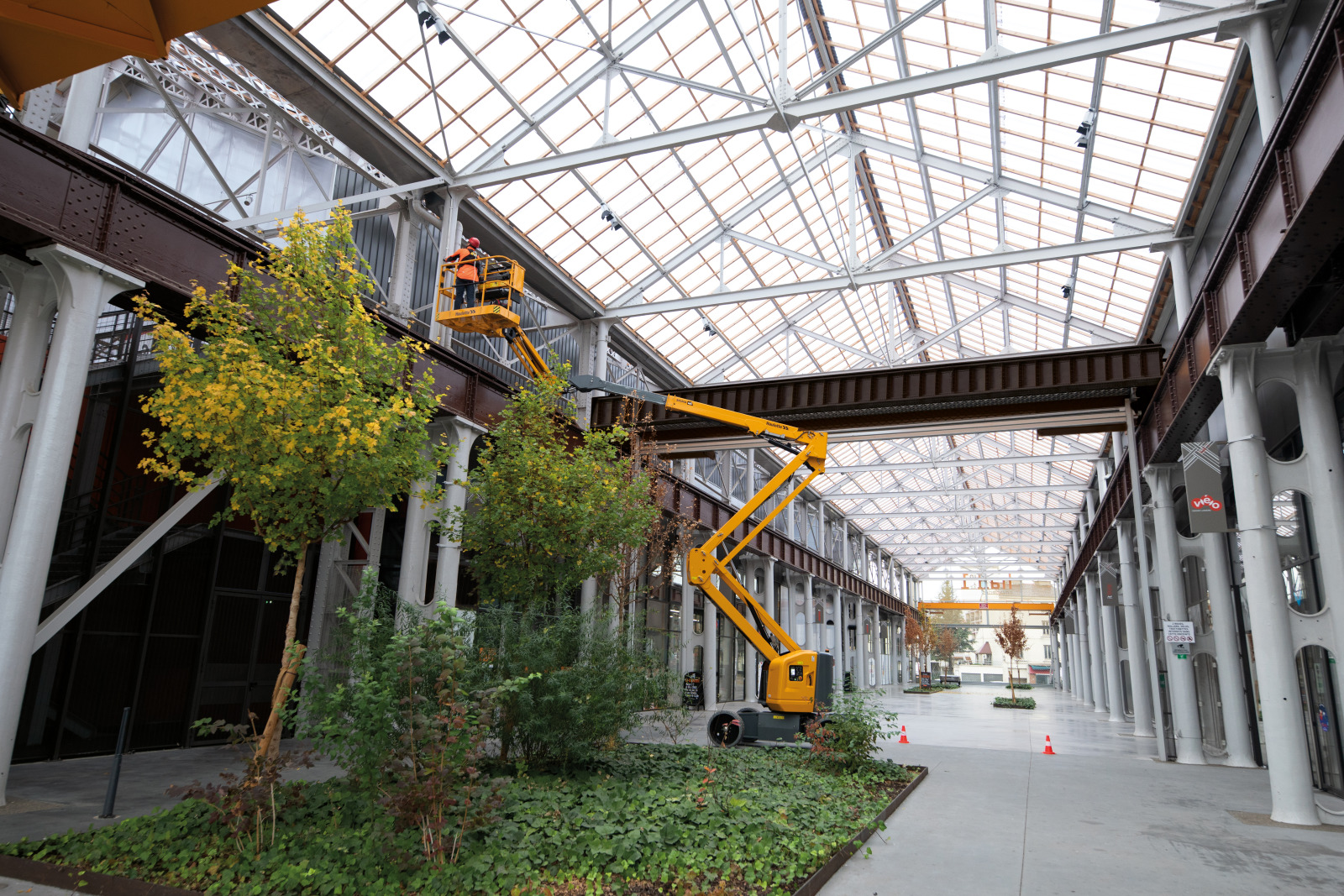

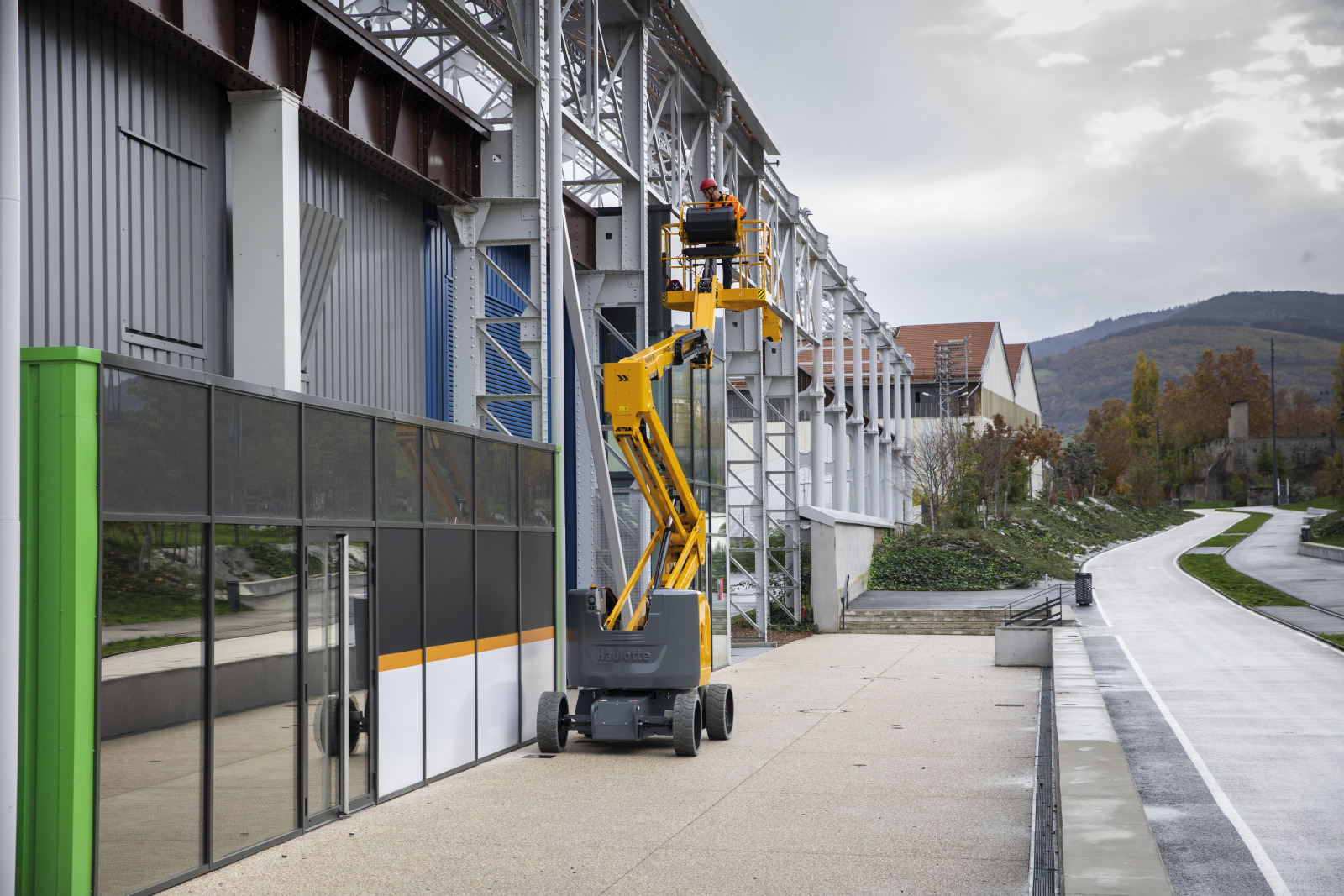

- Versatility indoor & outdoor on firm surfaces
- High load capacity of 500 lb
Move with agility

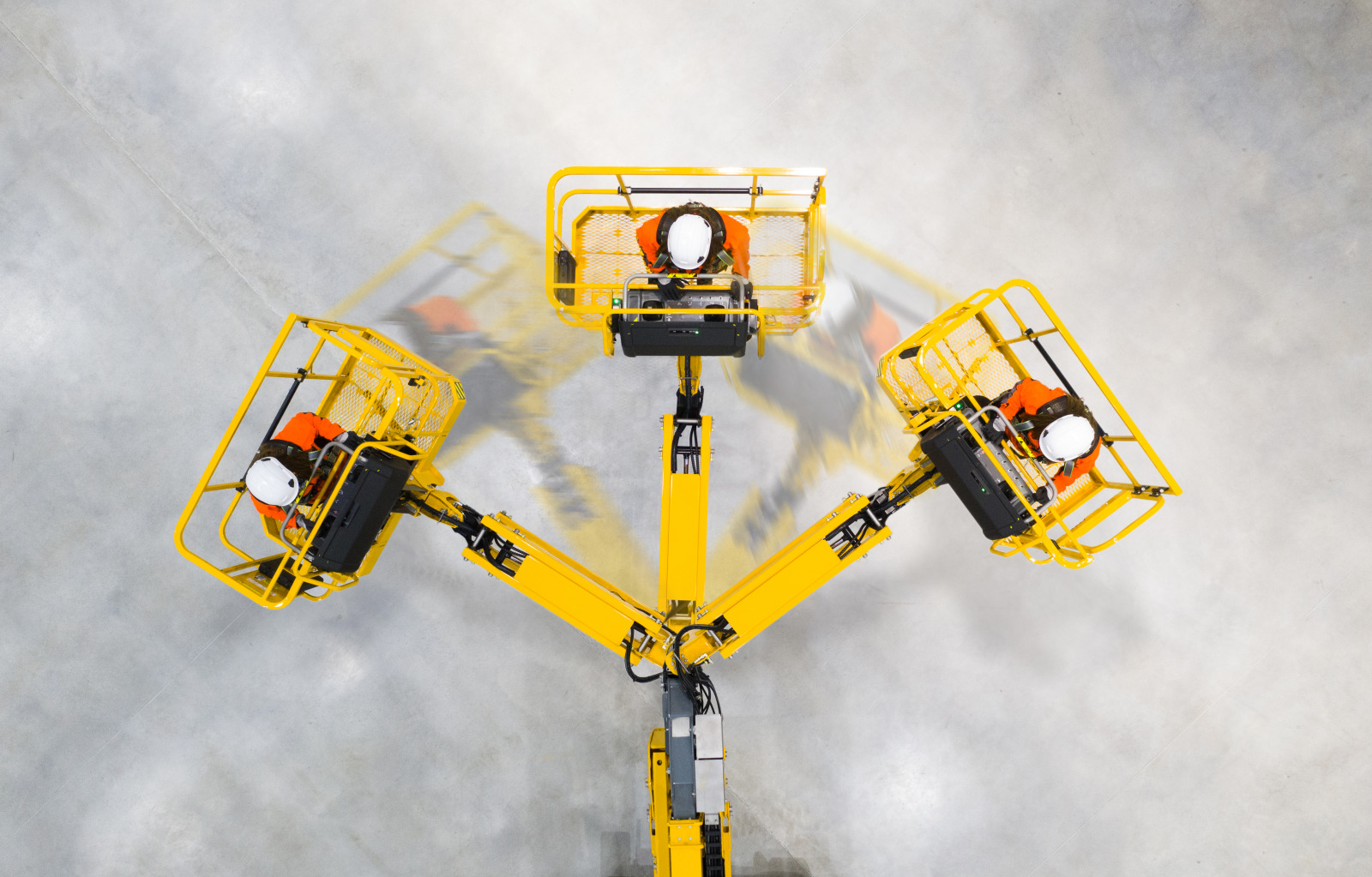

- Jib with horizontal rotation provides access to the most inaccessible places (PRO model)
- Zero tailswing and tight turning radius makes it easy to move in confined spaces
- Precise & smooth movements
Reliable serviceability
- Haulotte Activ'Energy Management takes care of your battery
- Haulotte Activ’Screen: on-board configuration & diagnostic interface
Work safely
- Haulotte Activ'Shield Bar *
- Haulotte Activ'Lighting System (optional)
| Working height | 52 ft 3 in |
| Platform height | 46 ft 3 in |
| Horizontal outreach | 27 ft 5 in |
| Up and over clearance | 24 ft 3 in |
| Lift capacity | 500 lb (2 pers.) |
| Platform size | 4 ft 9 in x 2 ft 7 in |
| Length | 21 ft 8 in |
| Width | 5 ft 9 in |
| Height - stowed | 6 ft 7 in |
| Length - transport | 21 ft 8 in |
| Tailswing | 0 in |
| Vertical jib rotation | -65° /+65° |
| Horizontal jib rotation | N/A |
| Platform rotation | -85° /+85° |
| Turntable rotation | 355 ° |
| Wheelbase | 6 ft 7 in |
| Ground clearance | 7 in |
| Tilt alarm | 4°/4° |
| Drive speed | 3.1 mph |
| Maximum wind speed rating | 28 mph |
| Gradeability | 25 % |
| Turning radius - outside | 12 ft 10 in |
| Tires | 27 x 10 in |
| Weight | 15,215 lb |
| Batteries | 8 x 6 V - 435 Ah (C20) |
| Ground clearance - mini | 0 in |
| Ground clearance - maxi | 0 in |
| Ground clearance - mini | 0 in |
| Ground clearance - maxi | 0 in |
- 3D horizontal jib (standard on PRO model)
- 2 wheel drive / 2 wheel steer
- AC motors
- 48V battery pack
- Haulotte Activ'Energy Management: smart charger (without centralized battery watering system)
- Haulotte Activ'Shield Bar 2.0
- Haulotte Activ'Lighting System for safe loading in low visibility conditions (optional on SIGMA models, Standard on SIGMA PRO models)
- Haulotte Activ'Screen, embedded diagnostic system, with color screen
- Upper control box cover
- Tool tray
- Large solid, non-marking industrial tires
- AC power to basket
- Lockable battery circuit breaker
- Motion alarm
- Cones holder
- Fluorescent tube holder
- Cold weather hydraulic oil
- Haulotte Activ'Energy Management : manual or automatic battery water-filling system (smart charger as standard)
- USB plug
- Telematics solutions
- FASTN, universal and active anchorage
