Presentation
- High performance & rough terrain capabilities
- Full electric drive
- Maintenance and service-oriented
- Extended duty cycles
Specifications
High performance & rough terrain capabilities
- Platform capacity of 1,650 lbs
- Drive axle with manual locking rear differential increases ground traction
Full electric drive
- Quiet & clean operation
- Versatile use: outdoor/ indoor
- Smooth & proportional movements
Maintenance and service-oriented
- Activ’Screen: on-board configuration & diagnostic interface

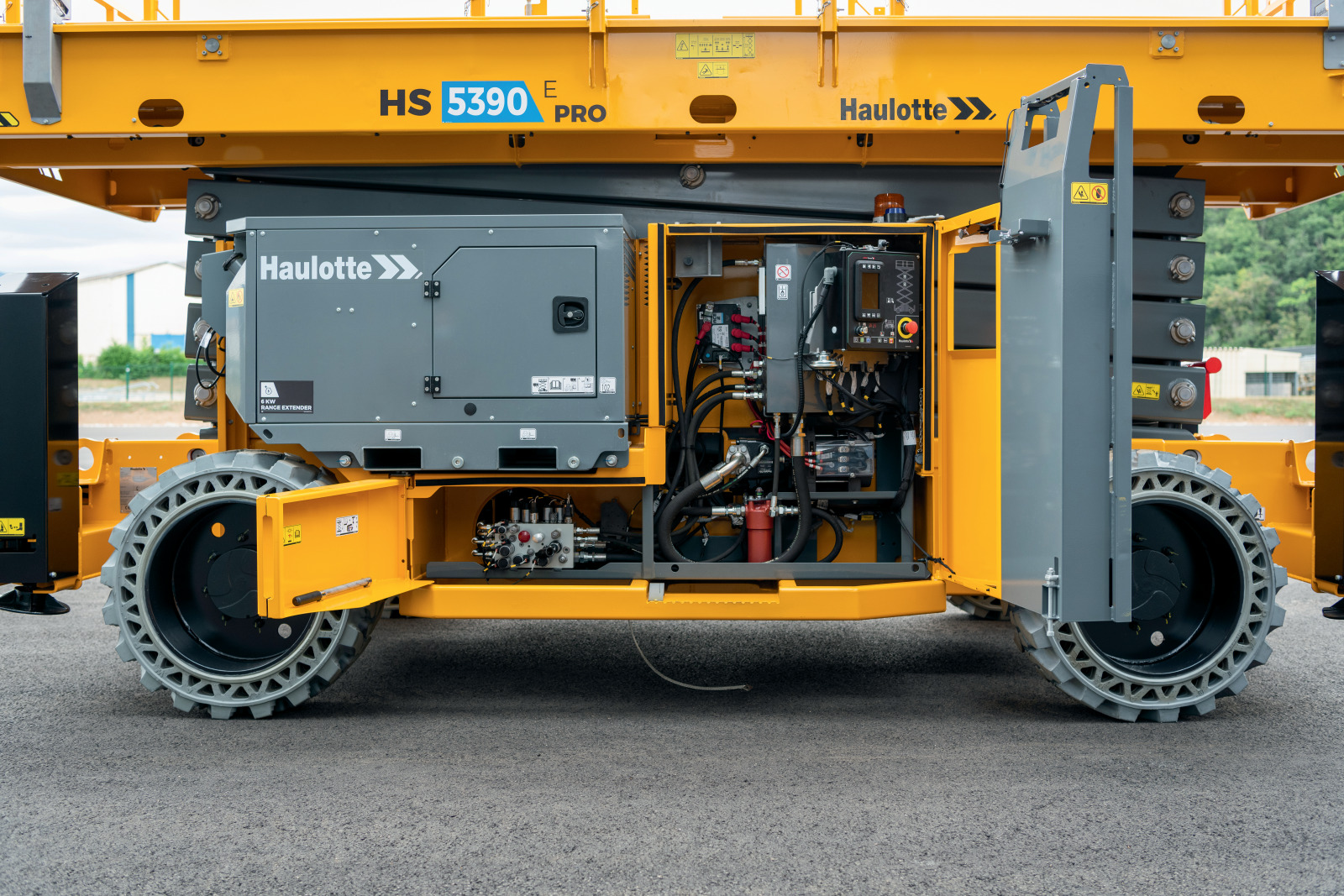

- Easy access to components
- Activ’Energy Management takes care of your battery
Extended duty cycles
- Multiple charging modes including optional accelerated charge
- Optional & removable, low fuel consumption Range Extender
| Working height | 58 ft 6 in |
| Platform height | 52 ft 6 in |
| Driveable at full height up to | 36 ft 8 in |
| Lift capacity | 1,654 lb (4 pers.) |
| Lift capacity - extension | 496 lb |
| Platform length - outside | 12 ft 11 in |
| Platform length - extended | 16 ft 1 in |
| XL platform length (option) | 16 ft 2 in |
| XL platform length - extended (option) | 24 ft 7 in |
| Extension length | 3 ft 3 in |
| Length - extension XL option | 4 ft 2 in |
| Platform width - outside | 6 ft 2 in |
| Height - stowed | 10 ft 4 in |
| Height - guardrails lowered | 7 ft 9 in |
| Overall width | 7 ft 7 in |
| Length | 14 ft 5 in |
| Wheelbase | 9 ft 1 in |
| Ground clearance | 13 in |
| Drive speed | up to 3.1 mph |
| Gradeability | 40 % |
| Tilt (longitudinal / lateral) | 5° / 2° |
| Turning radius - outside | 22 ft 2 in |
| Tires | 32.7 x 11.2 in |
| Batteries | 8 x 6 V - 435 Ah (C20) |
| Weight | 17,746 lb |
| Working height - indoor | 0 ft |
| Working height - outdoor | 0 ft |
| Platform height - indoor | 0 ft |
| Max. drive working height - indoor | 0 ft |
| Working height - indoor | 0 ft |
| Working height - outdoor | 0 ft |
| Platform height - indoor | 0 ft |
| Max. drive working height - indoor | 0 ft |
- 4 wheel drive
- Mechanical axle with manual locking rear differential
- Outriggers with centralized or individual controls
- One platform extension
- Double swing gate entries
- Folding handrails
- Haulotte Activ'Energy Management: smart battery management system & manual centralized watering
- AC motors
- 48V battery pack
- Haulotte Activ'Screen
- Double swing gate entries (Standard in North America)
- Standard platform with dual extensions (19 ft 4 in)
- XL platform with dual extensions (24 ft 7 in)
- Range Extender (5.5 kW - Stage 5)
- Accelerated charger (240V)
- Cold & arctic weather kits
- Non marking tires
- Material handling rack
- AC power to platform plug (110 / 230 V)
- Platform lighting
- Work light
- Telematics holder & pre-wiring
- Telematics solutions
- Haulotte Activ'Energy Management: Automatic battery water-filling system
- Haulotte Activ'Shield Bar
