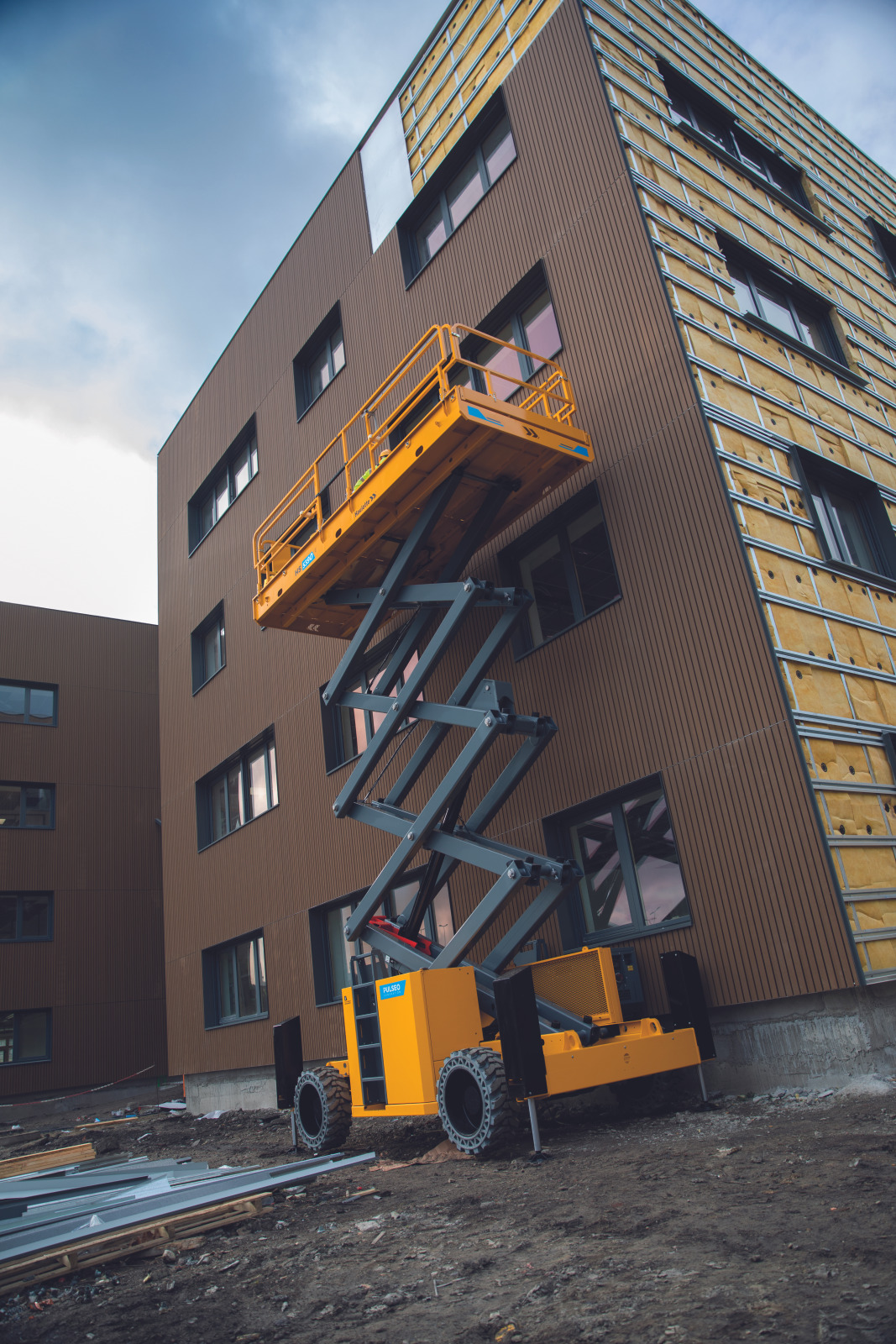

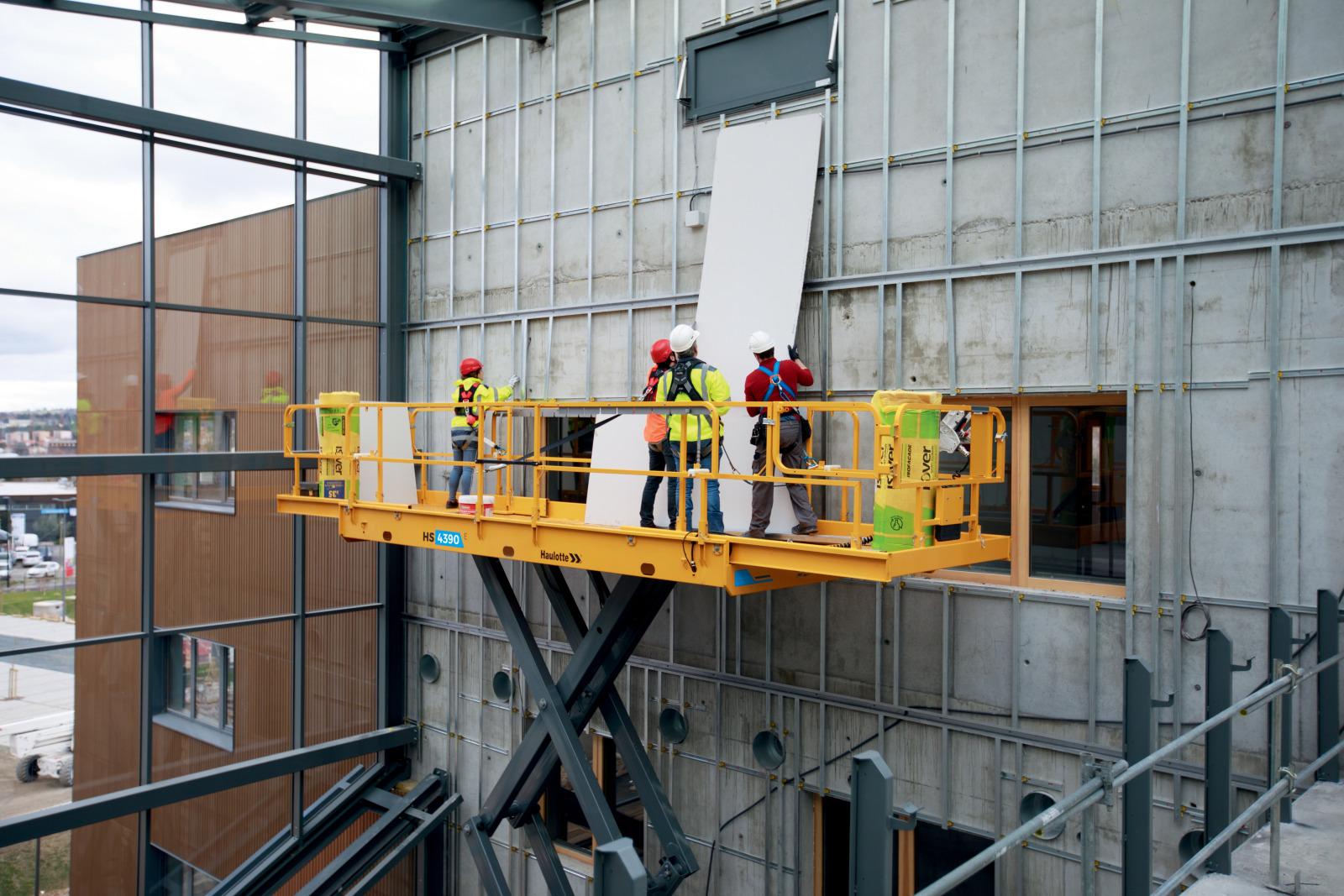

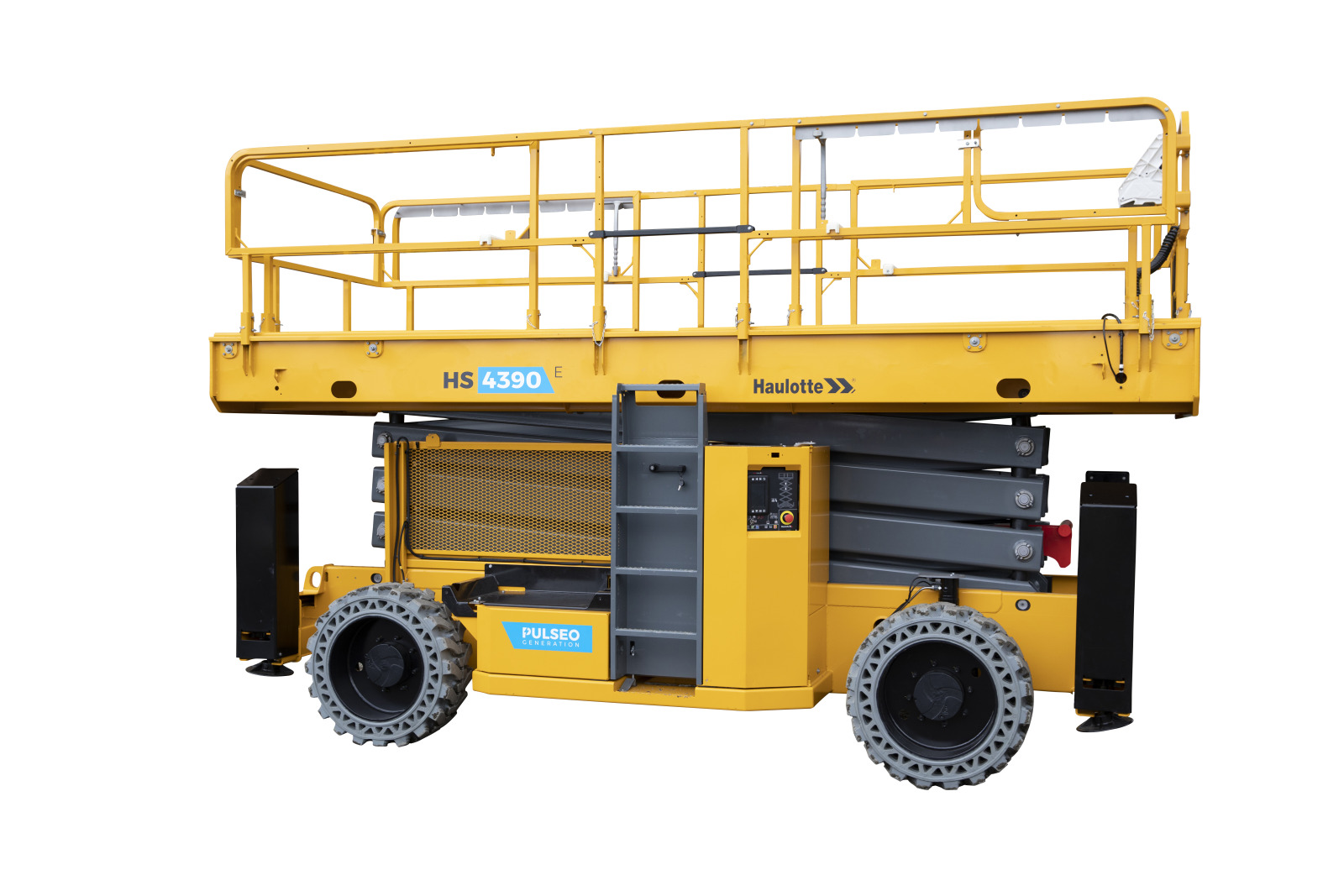

Electric scissor liftHS4390 E

  • Electric scissor lift
  • High performance & rough terrain capabilities
  • Platform capacity of 1,650 lbs
  • Drive axle with manual locking rear differential increases ground traction
  • Full electric drive
  • Quiet & clean operation
  • Versatile use: outdoor/ indoor
  • Smooth & proportional movements
  • Maintenance and service-oriented
  • Activ’Screen: on-board configuration & diagnostic interface
  • Easy access to components
  • Activ’Energy Management takes care of your battery
  • Extended duty cycles
  • Multiple charging modes including optional accelerated charge
  • Optional & removable, low fuel consumption Range Extender

Compare

Working height 48 ft 8 in
Platform height 42 ft 8 in
Lift capacity 1,654 lb (4 pers.)
Platform length - outside 12 ft 11 in
Platform length - extended 16 ft 1 in
Extension length 3 ft 3 in
Platform width - outside 6 ft 2 in
Height - stowed 10 ft
Overall width 7 ft 7 in
Length 14 ft 5 in
Wheelbase 9 ft 1 in
Drive speed 3.1 mph
Driveable at full height up to 49 ft 3 in
Gradeability 45 %
Turning radius - outside 22 ft 2 in
Batteries 8 x 6 V - 435 Ah (C20)
Weight 16,577 lbs
Tires 32.7 x 11.2 in
Lift capacity - extension 496 lb
Height - guardrails lowered 7 ft 5 in
Ground clearance 13 in
Tilt (longitudinal / lateral) 5° / 3°
XL platform length (option) 16 ft 2 in
XL platform length - extended (option) 24 ft 7 in
Lenght - extension XL option 4 ft 2 in

  • 4 wheel drive
  • Mechanical axle with manual locking rear differential
  • Outriggers with centralized or individual controls
  • One platform extension
  • Double swing gate entries
  • Folding handrails
  • Haulotte Activ'Energy Management: smart battery management system & manual centralized watering
  • AC motors
  • 48V battery pack
  • Haulotte Activ'Screen

  • Double swing gate entries (Standard in North America)
  • Standard platform with dual extensions (19 ft 4 in)
  • XL platform with dual extensions (24 ft 7 in)
  • Range Extender (5.5 kW - Stage 5)
  • Accelerated charger (240V)
  • Automatic battery water-filling system
  • Cold & arctic weather kits
  • Non marking tires
  • Material handling rack
  • AC power to platform plug (110 / 230 V)
  • Scissor stack protection
  • Platform lighting
  • Work light
  • Telematics holder & pre-wiring
  • Telematics solutions
