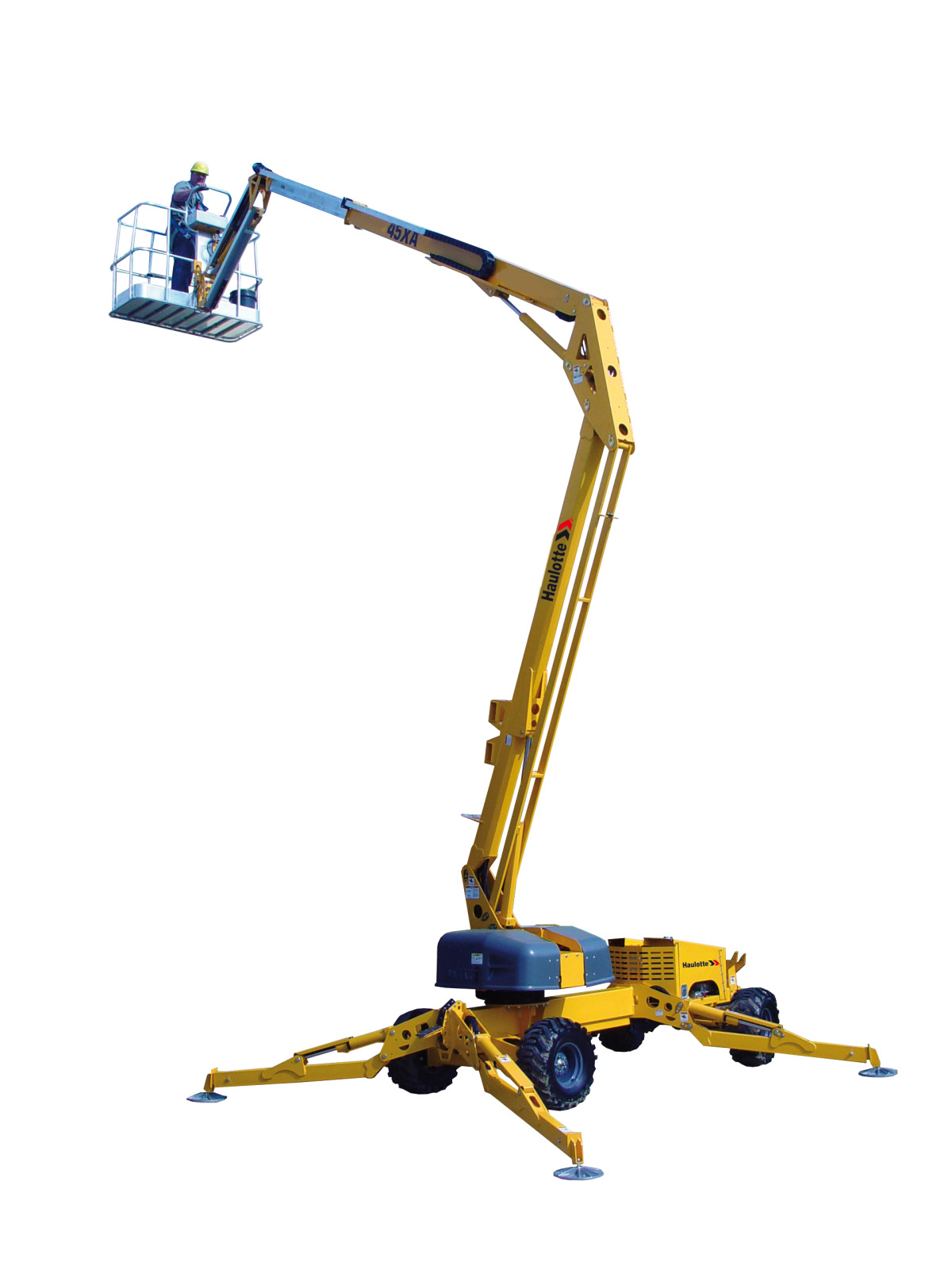

Lightweight self-propelled booms45 XA

  • Lightweight self-propelled booms
  • Dual energy
  • Inside and outside use
  • Logistics / Retail / Industry
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Access like never before
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • High performance 4WD and light weight provide access to places larger and heavier machines cannot go
  • Easily transported on a trailer with no commercial driver’s license requirement
  • Dual power source (DC / Gas) allows for indoor/outdoor use
  • Optimum performance
  • 4,000 Watt generator
  • Air / water lines to platform
  • 110V GFI protected power to the platform

Working height 51 ft
Platform height 45 ft
Horizontal outreach (from centerline) 27 ft
Horizontal outreach (from edge of footpad) 21 ft
Up and over height 20 ft 9 in
Lift capacity 500 lb
Length - stowed 18 ft 2 in
Width stowed 5 ft 6 in
Height stowed 6 ft 7 in
Wheelbase 8 ft 9 in
Ground clearance 6 in
Platform size 5 ft x 2 ft 6 in
Outrigger footprint 12 ft 4 in x 11 ft 4 in
Turntable rotation 350° non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150° (+70 / -80)
Drive speed 4.75 mph (max)
Gradeability 45%
Turning radius - inside (2WS) 10 ft
Turning radius - inside (4WS) 5 ft 4 in
Tire size 26 x 12 Bar lug
Batteries 4 x 6V 260 Amp-hr
Engine 31 hp gas Kubota
Weight 5,200 lb
  • Hydraulic outriggers
  • Automatic leveling system (leveling capability 12.5°)
  • Self-leveling platform
  • Air and water lines to platform
  • 110V GFI protected outlet to platform and base
  • 4,000 W generator
  • Hour meter
  • Battery condition indicator
  • Dual power system
  • Easy to use controls with logically positioned buttons
  • Tilt alarm / sensor
  • Spring applied hydraulic released brakes
  • Inboard 25 amp charger
  • Bar lug tires
  • 4 wheel steering (standard on HLA19PX)
  • Platform rotator (manual)
  • Flashing beacon
  • Flourescent tube caddy
  • Tool tray
  • Turf tires
  • Dual fuel - 32.5 Hp gas / liquid propane Kubota
  • Diesel - 21.6 Hp Kubota
  • Non-marking bar lug tires
