Scissor lift Compact 3947 E DUAL

COMPACT scissor lifts deliver unparalleled strength and adapt perfectly to the constraints of your worksites. Each subassembly is optimized, from the chassis to the platform and scissor arms. COMPACT scissor platforms guarantee high productivity and optimum uptime.

Product characteristics

Indoor / Outdoor

Indoor / Outdoor

5-year warranty

5-year warranty

Even ground

Even ground

Electric

Electric

Application fields

Finishing

Finishing

Logistic / Retail / Industry

Logistic / Retail / Industry

Maintenance & Renovation

Maintenance & Renovation

Sporting & other events

Sporting & other events

Compact 3947 E DUAL

Presentation

  • Smart rugged design
  • Maximized potential
  • Unique user experience
  • Unbeatable serviceability

Specifications

Smart rugged design

Smart rugged design

  • Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
  • Reinforced guardrails with additional vertical stiles for maximum durability
Maximized potential

Maximized potential

  • Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
  • IN/OUT usage with no platform weight capacity restriction
Unique user experience

Unique user experience

  • Proportional movements for precise driving (AC motors)
  • Ergonomic upper control box with grab handle & speed selector
Unbeatable serviceability

Unbeatable serviceability

  • Haulotte Activ'Energy Management for battery care
  • On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

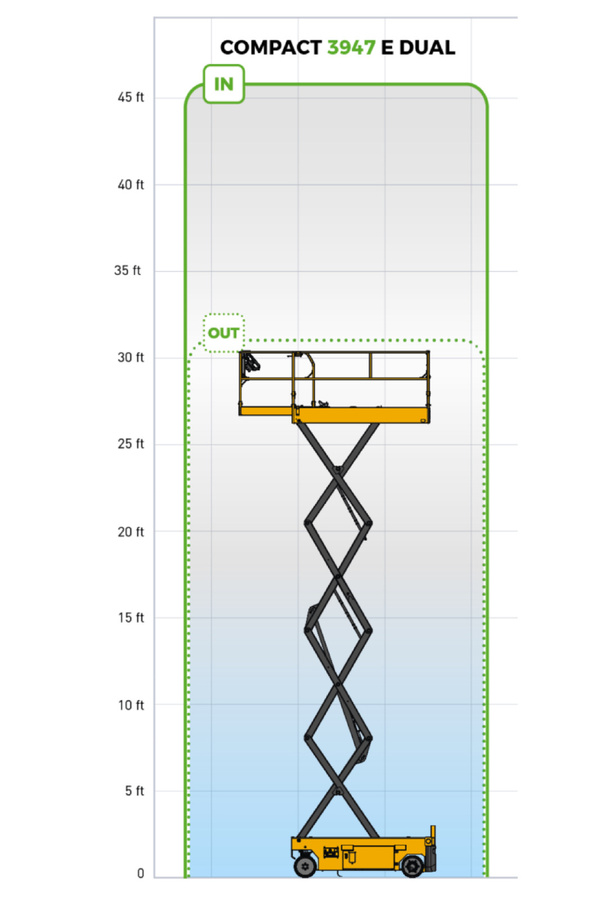

Working height 31 ft 7 in
Working height - indoor 44 ft 7 in
Overall width 47 in
Platform height 25 ft 7 in
Platform height - indoor 38 ft 7 in
Driveable at full height up to 25 ft 7 in
Max. drive working height - indoor 38 ft 7 in
Lift capacity 700 lb (1 pers.)
Lift capacity - inside 700 lb (3 pers.)
Lift capacity - outside 700 lb (1 pers.)
Lift capacity - extension 265 lb
Platform length - outside 7 ft 10 in
Platform length - extended 10 ft 11 in
XL platform length (option) 0 ft
XL platform length - extended (option) 0 ft
Extension length 37 in
Length - extension XL option 0 ft
Platform width - outside 47 in
Platform size - extended 0 ft
Height - stowed 8 ft 11 in
Height - guardrails lowered 6 ft 8 in
Length 8 ft 2 in
Wheelbase 6 ft 1 in
Ground clearance 5 in
Ground clearance - pothole guards deployed 1 in
Ground clearance 5 in
Drive speed 0.43 - 2.61 mph
Gradeability 25 %
Tilt alarm 0 °
Tilt (longitudinal / lateral) 3.5° / 1.5°
Turning radius - outside 6 ft
Non-marking tires 15 x 5
Tires 0 in
Batteries 24 V - 225 Ah (C20)
Hydraulic system capacity 4 gal
Weight 6,747 lb
Working height - outdoor 31 ft 7 in
Auxilliary hydraulic ports 0 mph
Auxilliary hydraulic ports 0 mph
Auxilliary hydraulic ports 0 mph
Auxilliary hydraulic ports 0 mph
Compact 3947 E DUAL
Compact 3947 E DUAL
Compact 3947 E DUAL

  • Haulotte Activ'Energy Management: Smart CAN charger with manual battery water filling system
  • Electric brake release system
  • Motion alarm
  • Solid non marking tires
  • 2 front steering wheels, 2 rear drive wheels
  • MyHaulotte multi-services portal access
  • Mobile pothole guards
  • Manual emergency descent
  • 2 drive speeds selector
  • Mobile upper control box
  • AC motors
  • Front platform extension
  • Foldable guardrails
  • Lateral & longitudinal forklift pockets
  • Haulotte Activ’Screen (battery charge information, hourmeter, service alerts & failures in code or in text...)
  • Battery level indicator
  • Battery access with swing out tray
  • 27A multivoltage charger
  • Swing gate entry
  • Basket plug (110 / 230 V)
  • Manual selection for inside use (Dual only)
  • Single flashing light

  • Haulotte Activ'Energy Management: automatic battery water filling systems
  • AGM maintenance-free batteries
  • Telematics solutions
  • Pipe cradle
  • Panel carrier
  • Additional protection of upper & lower control box
  • Working light
  • Flashing light (dual or 360°)
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
