Presentation
- Smart rugged design
- Maximized potential
- Unique user experience
- Unbeatable serviceability
Specifications
Smart rugged design
- Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
- Reinforced guardrails with additional vertical stiles for maximum durability
Maximized potential
- Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
- IN/OUT usage with no platform weight capacity restriction
Unique user experience
- Proportional movements for precise driving (AC motors)
- Ergonomic upper control box with grab handle & speed selector
Unbeatable serviceability
- Haulotte Activ'Energy Management for battery care
- On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

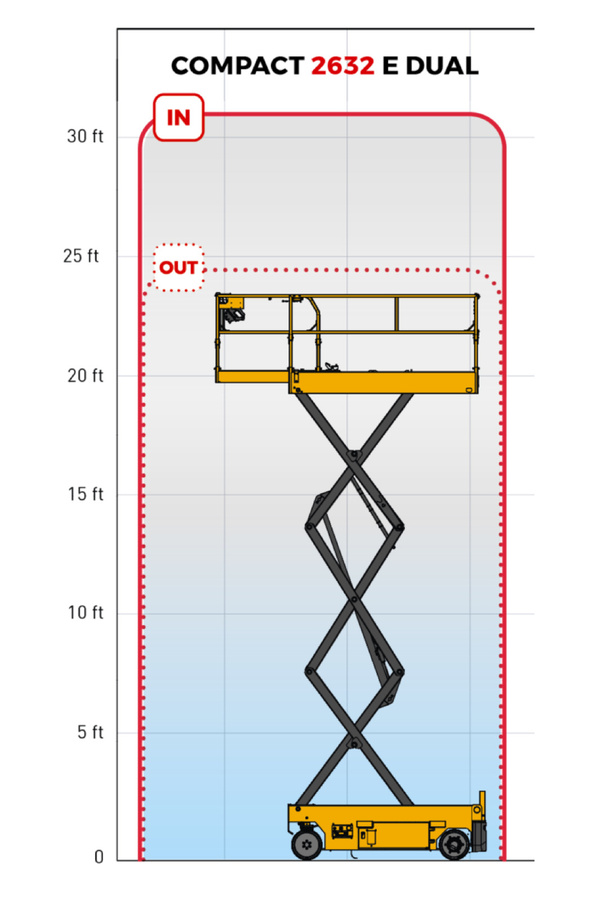

| Working height | 23 ft 9 in |
| Working height - indoor | 31 ft 7 in |
| Overall width | 32 in |
| Platform height | 17 ft 1 in |
| Platform height - indoor | 25 ft 7 in |
| Driveable at full height up to | 17 ft 1 in |
| Max. drive working height - indoor | 25 ft 7 in |
| Lift capacity | 0 |
| Lift capacity - inside | 550 lb (2 pers.) |
| Lift capacity - outside | 550 lb (1 pers.) |
| Lift capacity - extension | 265 lb |
| Platform length - outside | 7 ft 10 in |
| Platform length - extended | 10 ft 11 in |
| XL platform length (option) | 0 ft |
| XL platform length - extended (option) | 0 ft |
| Extension length | 37 in |
| Length - extension XL option | 0 ft |
| Platform width - outside | 32 in |
| Platform size - extended | 0 ft |
| Height - stowed | 7 ft 9 in |
| Height - guardrails lowered | 6 ft 4 in |
| Length | 8 ft 2 in |
| Wheelbase | 6 ft 1 in |
| Ground clearance | 5 in |
| Ground clearance - pothole guards deployed | 1 in |
| Ground clearance | 0 in |
| Drive speed | 0.43 - 2.61 mph |
| Gradeability | 25 % |
| Tilt alarm | 0 ° |
| Tilt (longitudinal / lateral) | 3.5° / 1.5 |
| Turning radius - outside | 6 ft 9 in |
| Non-marking tires | 15 x 5 |
| Tires | 0 in |
| Batteries | 24 V - 225 Ah (C20) |
| Hydraulic system capacity | 3 gal |
| Weight | 4,763 lb |
| Working height - outdoor | 23 ft 1 in |
| Auxilliary hydraulic ports | 0 mph |
| Auxilliary hydraulic ports | 0 mph |
| Auxilliary hydraulic ports | 0 mph |
| Auxilliary hydraulic ports | 0 mph |
- 2 front steering wheels, 2 rear drive wheels
- Solid non marking tires
- Motion alarm
- Electric brake release system
- Drop bar entry
- Haulotte Activ'Energy Management: Smart CAN charger
- 27A multivoltage charger
- Battery access with swing out tray
- Battery level indicator
- Haulotte Activ’Screen (battery charge information, hourmeter, service alerts & failures in code or in text...)
- Lateral & longitudinal forklift pockets
- Foldable guardrails
- Front platform extension
- AC motors
- Mobile upper control box
- 2 drive speeds selector
- Manual emergency descent
- Mobile pothole guards
- MyHaulotte multi-services portal access
- Basket plug (110 / 230 V)
- Manual selection for inside use (Dual only)
- Single flashing light
- Haulotte Activ'Energy Management: automatic or manual battery water filling systems
- AGM maintenance-free batteries
- Telematics solutions
- Pipe cradle
- Panel carrier
- Additional protection of upper & lower control box
- Working light
- Flashing light (single, dual or 360°)
- Biodegradable hydraulic oil
- Cold weather hydraulic oil
