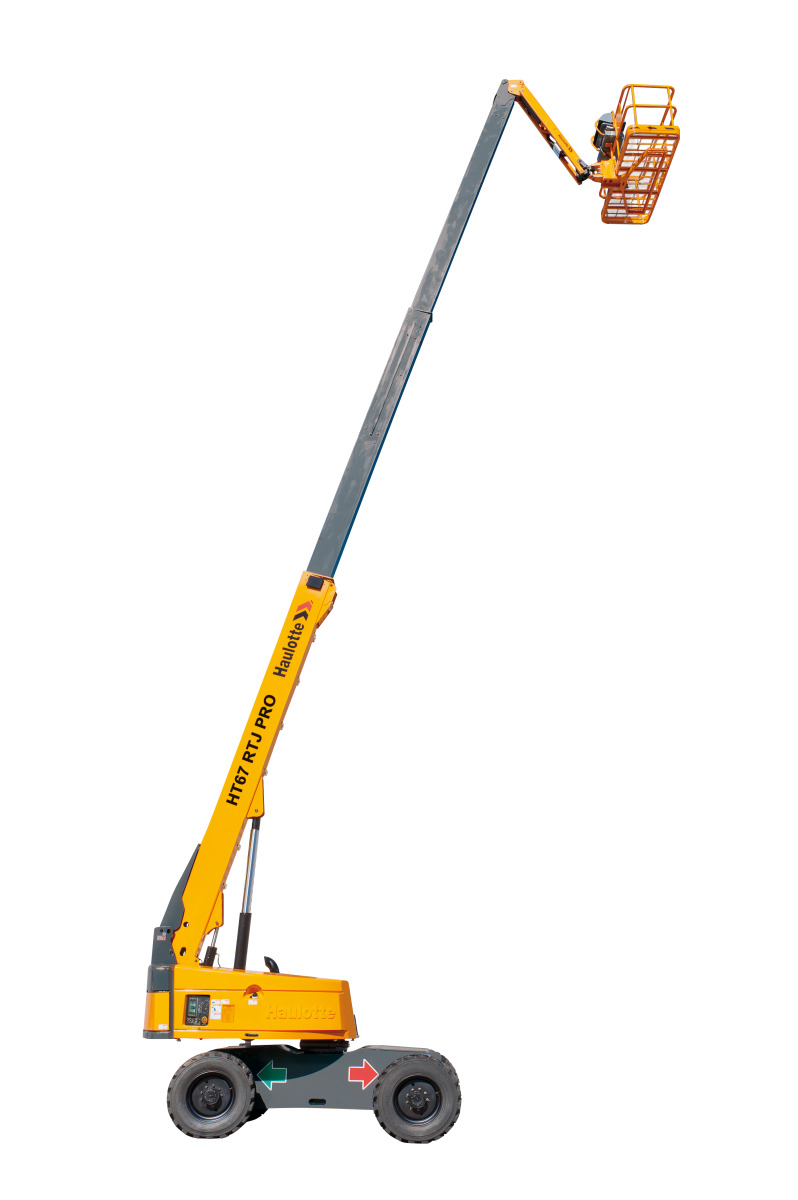

Telescopic boomsHT67 RTJ PRO

  • Telescopic booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Outstanding performance & productivity
  • Haulotte Activ'Lighting System for safe loading/unloading in low visibility conditions (standard on PRO)
  • Superior work envelope
  • Quick, proportional and simultaneous movements
  • Reliable safety and comfort
  • Rigid boom
  • Maximized Total Cost of Ownership
  • Easy access to all components
  • Exclusive modular platform, quick and easy to repair
  • Haulotte Activ'Screen diagnostic display for onboard fault & service alerts
  • Platform load capacity 500 lb
  • Haulotte Activ'Shield Bar 2.0 (standard on PRO)
  • Dual load 500-1000 lb (Standard in US & Canada)
  • Haulotte Stop Emission System automatically turns engine off & on

Working height 73 ft
Platform height 67 ft
Horizontal outreach 60 ft 5 in
Lift capacity 500 lb (2 pers.) option: 1,000 lb (3 pers.)
Platform size 8 ft x 3 ft
Length - stowed 34 ft 3 in
Length - transport 25 ft 8 in
Width 8 ft 1 in
Height - stowed 8 ft 11 in
Height - transport 10 ft 10 in
- Vertical jib rotation - 133° (+68/-65)
- Platform rotation - 180° (+90/-90)
- Boom rotation angle - 90° (+75/-15)
Turret swing 360 ° continuous
Tailswing 3 ft 7 in
Wheelbase 8 ft 2 in
Ground clearance 14 in
Tilt alarm
Drive speed 0.3 - 4.0 mph
Gradeability 40 %
Turning radius - outside 11 ft 2 in
- Tires - 385/65 - 22.5
- Engine - Kubota 48.6kW, 66hp, Tier 4f
Weight 29,540 lb
- Fuel tank - 44 gal
- Below grade reach - 13 ft 1 in
- Maximum wind speed rating - 28 mph
  • Haulotte Activ'Lighting System (standard on PRO)
  • 4 wheel drive / 2 (O) or 4 (PRO) wheel steer
  • Automatic differential wheel lock for superior rough terrain capability
  • Front oscillating axle for increased stability on rough terrain
  • Proportional controls enhance comfort and safety
  • 4 simultaneous movements for maximum productivity
  • Large modular platform 8 ft x 3 ft with swing gate
  • Upper control box protection cover and tool tray in ultra-rugged composite
  • Power to platform 110 / 230V
  • Haulotte Activ’Screen onboard colored monitor screen and diagnostic system
  • Swing out engine tray for ease of maintenance
  • Hour meter
  • Low fuel level indicator (upper control box)
  • Engine pre-heater with light indicator
  • Visual and audio alarms for tilt and load sensing
  • 12 V battery
  • Electric pump system and emergency descent
  • Rotating beacon
  • Driving alarm
  • Platform limitation +/- 10°
  • Universal telematics plug
  • Haulotte Stop Emission System
  • Haulotte Activ'Shield Bar (standard on PRO)
  • Dual load capacity 500 / 1000 lb (2-3 persons)(Standard in US & Canada)
  • 3.5 kW, 6.5 kW, 12 kW hydraulic generator
  • Narrow modular platform 5 ft 9 in x 2 ft 6 in with swing door
  • Lateral swing door entry gate
  • Power to platform (Standard in US & Canada)
  • Air line to platform
  • Glazier kit
  • Work lights
  • Biodegradable hydraulic oil
  • Cold weather package / Arctic kit
  • Warm weather package
  • 37 mph wind speed
  • Haulotte Activ'Shield Bar 2.0 (O model)
  • Pipe cradle kit
  • Haulotte Activ'Lighting System (O model)

Haulotte Services & warranties
