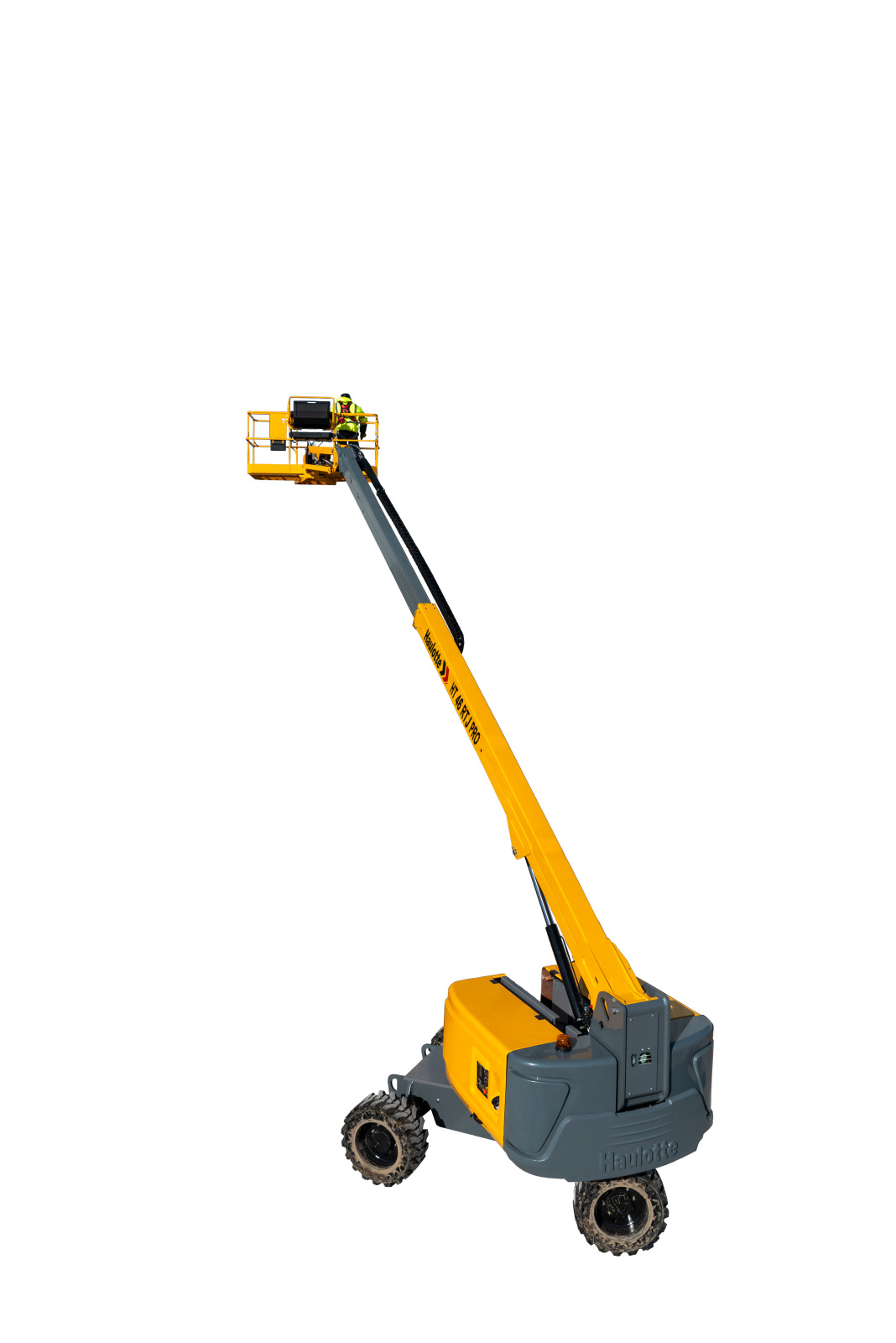

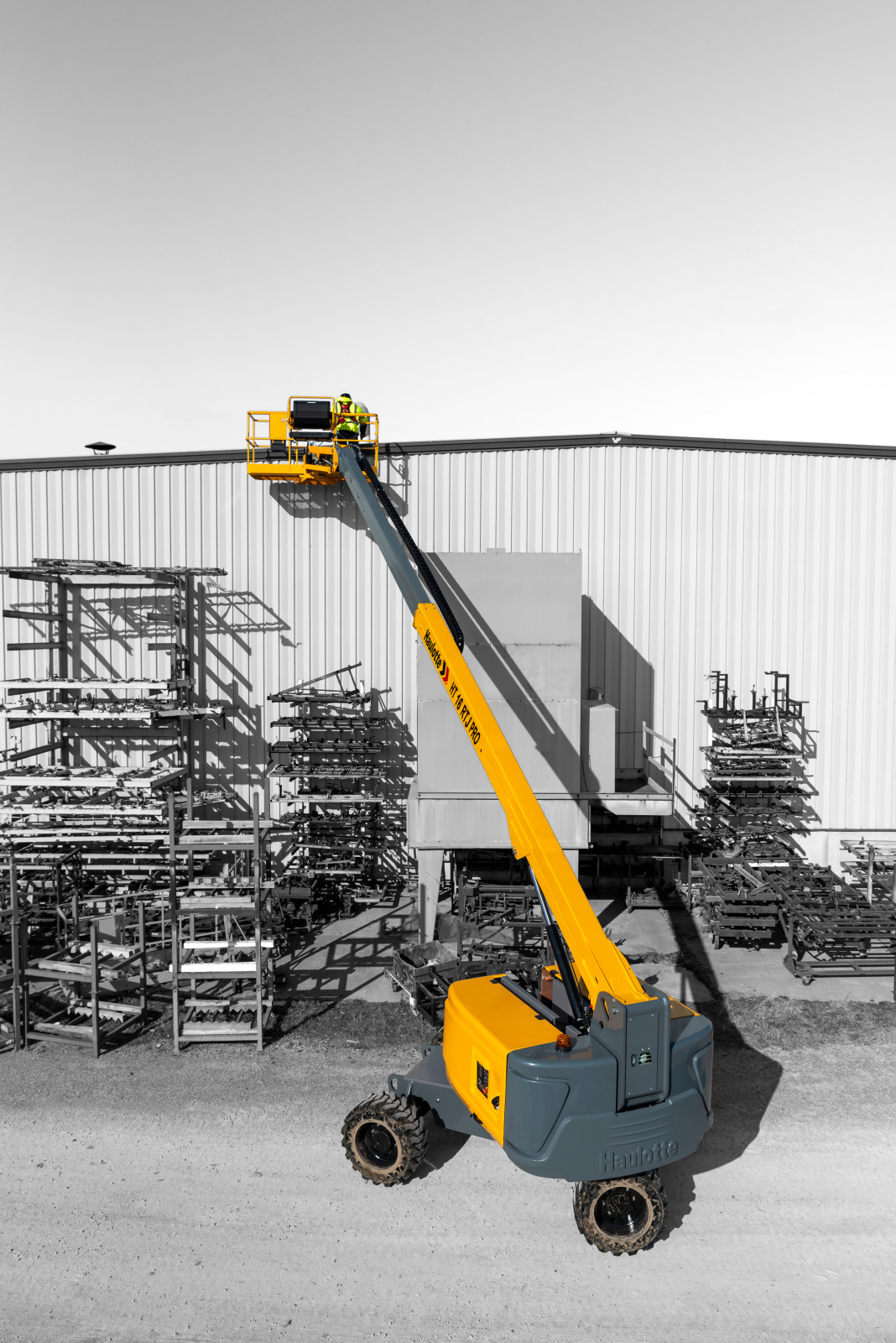

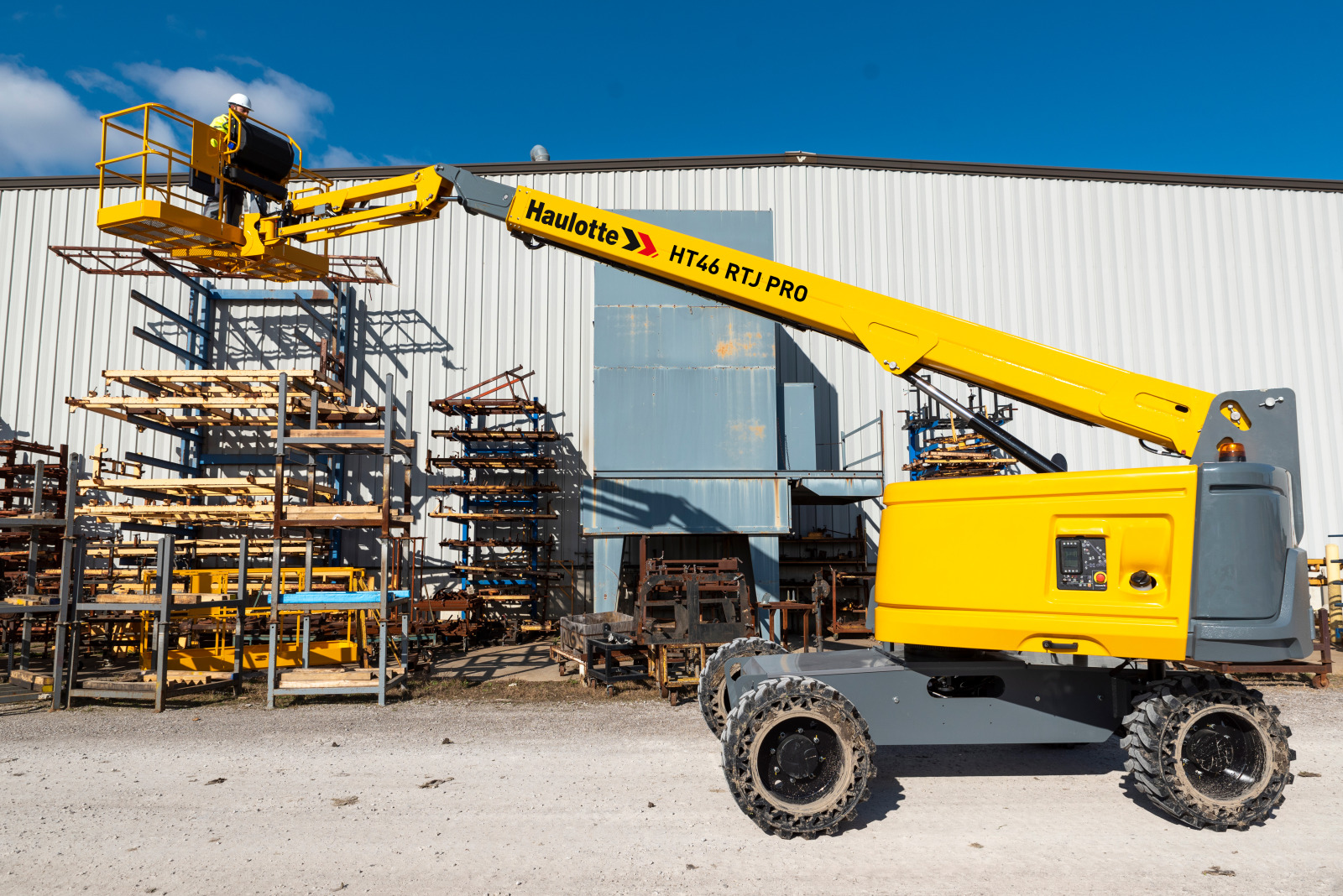

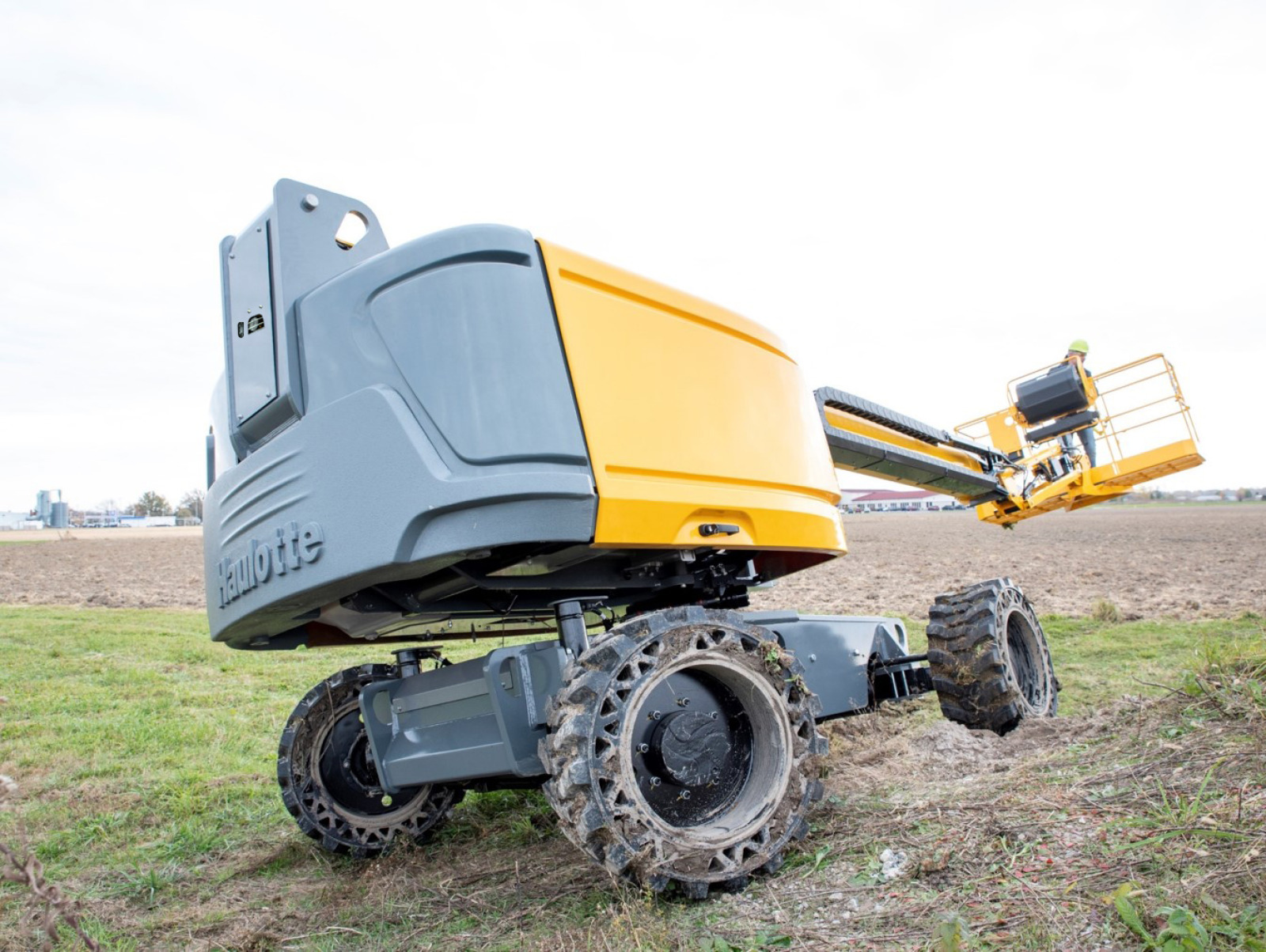

Telescopic boomsHT46 RTJ PRO

  • Telescopic booms
  • Diesel
  • Rough terrain
  • Outdoor
  • Building work
  • Finishing
  • Maintenance and restoration
  • Landscaping
  • Sporting and other events
  • Great productivity & performance
  • Dual load capacity: 550 lbs - 770 lbs restricted (standard)
  • 4 wheel drive for excellent rough terrain capabilities
  • 4 wheel steer for agile maneuverability
  • Quick & simultaneous movements
  • Maximized total cost of ownership
  • Haulotte Activ'Screen diagnostic display for onboard fault & service alerts
  • Easy access to components
  • Haulotte Stop Emision System reduces engine and component wear
  • Engine and drive train optimizes all-terrain performance
  • Optimal safety
  • Haulotte Activ’Shield Bar prevents crushing risks
  • Haulotte Activ’Lighting System illuminates the machine for safe loading in low visibility
  • Smooth & proportional movements for greater precision

Working height 52 ft 3 in
Platform height 46 ft 3 in
Horizontal outreach 42 ft 8 in
Lift capacity 550 lbs (770 lbs restricted)
Platform size 8 ft x 3 ft
Length - stowed 30 ft 1 in
Length - transport 21 ft 11 in
Width 7 ft 6 in
Height - stowed 8 ft 1 in
Height - transport 10 ft
Vertical jib rotation 133° (+68°/ -65°)
Turret swing 360° continuous
Tailswing 37 in
Wheelbase 7 ft 9 in
Ground clearance 13 in
Tilt alarm 5 °
Drive speed 3.2 mph
Gradeability 45 %
Turning radius - outside 11 ft 10 in
Weight 17,486 lb
Jib length 5 ft 11 in
Engine Kubota 18.5kW Tier4f
  • Haulotte Activ' Shield bar
  • Haulotte Activ' Lighting System: improved visibility
  • Haulotte Activ' Screen: on-board diagnostics
  • Haulotte Stop Emission System: automatically turns the engine off & on
  • 4 wheel drive
  • 4 wheel steer
  • Oscillating axle
  • Differential : permanent limited slip & operator controlled locking rear
  • Smooth & proportional movements
  • Telematics-ready connector
  • Up to 4 simultaneous movements
  • Cured-on solid tires
  • Swing out engine tray
  • Upper control box protection and tool tray
  • Sound and light alarm for tilt and load
  • All motion alarm and flashing beacon
  • Dual load basket capacity 550 - 770lb - restricted (standard in North America)
  • Large modular platform 8 ft x 3 ft (standard in North America)
  • Swing door entry gate (standard in North America)
  • Power to platform with plug in the basket (standard in North America)
  • Hydraulic generators 3.5kW or 6.5kW
  • Glazier pack
  • Pipe rack kit
  • Air-line to platform
  • Dual USB plug in basket
  • Non-marking tires
  • Hydraulic oil cooler
  • Cold weather package
