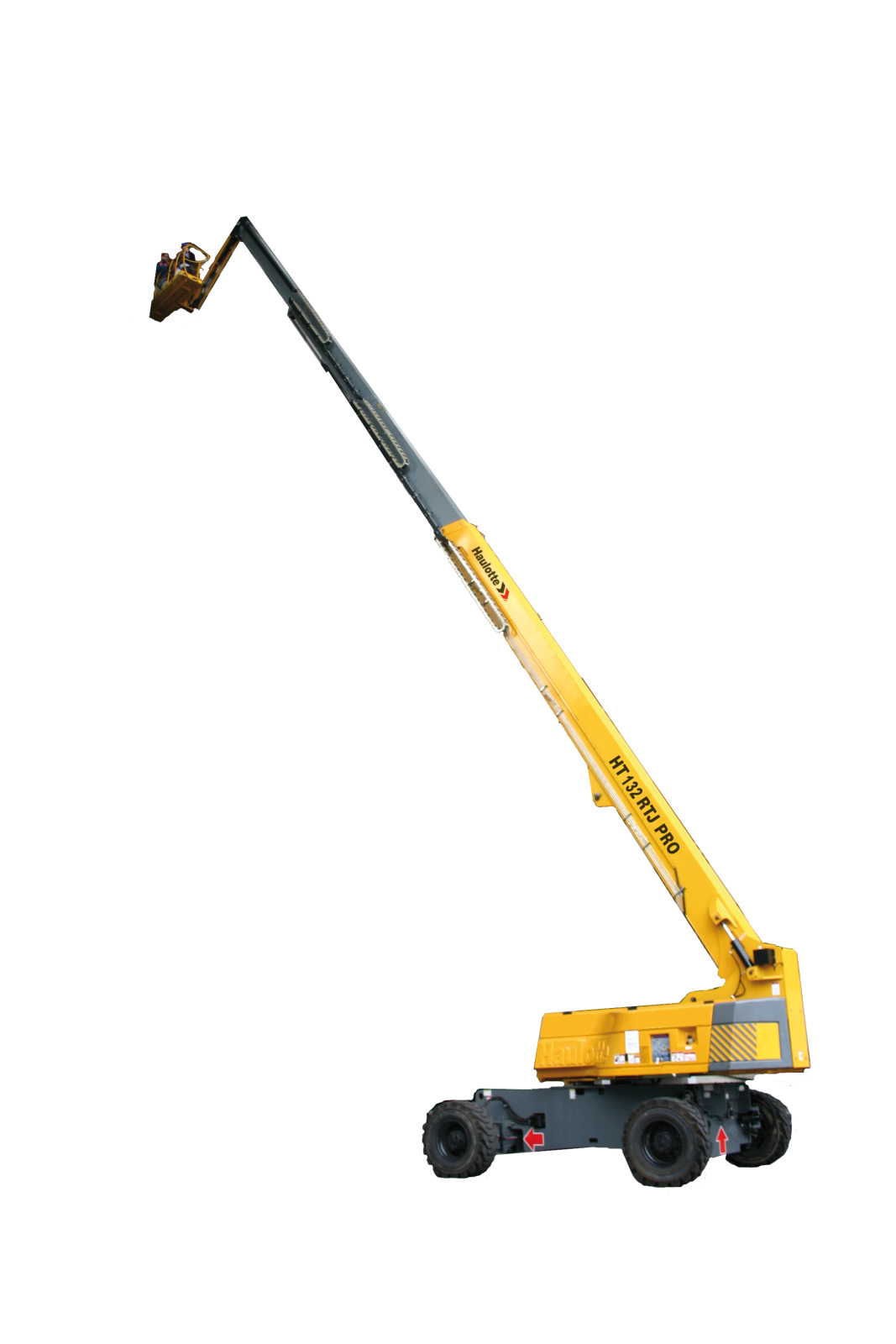

Telescopic boomsHT132 RTJ PRO

  • Telescopic booms
  • Diesel
  • Uneven ground
  • Outside use
  • Building works
  • Finishings
  • Maintenance and restoration
  • Landscaping
  • Sporting and other events
  • Outstanding rough terrain driving features
  • Differential wheel lock
  • Up to 4 simultaneous, proportional movements
  • Dual load capacity
  • 3D jib
  • Optimized serviceability
  • Self-diagnosis tool integrated in the lower control box
  • Fully modular basket for quick and easy repairs
  • Easy access to all components
  • Increased safety
  • Haulotte Activ’Shield Bar 2.0 (standard in North America)
  • Smooth and precise controls
  • Strong, quick, and maneuverable boom

Working height 138 ft 5 in
Platform height 131 ft 11 in
Horizontal outreach 66 ft 3 in
Lift capacity 500 lb (2 pers.) - 990 lb (3 pers.)
Platform size 8 ft x 3 ft
Length - stowed 48 ft 7 in
Length - transport 40 ft 4 in
Width 8 ft 2 in
Height - stowed 10 ft
Height - transport 10 ft
Vertical jib rotation 140° (+ 70° / - 70°)
Platform rotation 180° (+ 90° / - 90°)
Turret swing 360° continuous
Tailswing 9 ft 2 in
Wheelbase 11 ft 6 in
Ground clearance 15 in
Tilt alarm 3 °
Drive speed 0.2 - 3.1 mph
Gradeability 40 %
Turning radius - outside 18 ft 10 in
Tires 445 / 65 - 22.5
Engine Deutz, 55 kW, Turbo, Tier 4
Weight 47,187 lb
Jib length 8 ft
Width - with extended axles 10 ft 10 in
Engine Diesel
Horizontal jib rotation 150° (+ 75° / - 75°)
Maximum wind speed rating 28 mph
  • Haulotte Activ’Shield Bar (standard in North America)
  • Universal telematics plug
  • 4 wheel drive and 4 wheel steer
  • Front oscillating axle
  • 2 extendable axles
  • Fully proportional controls
  • 4 simultaneous movements
  • Differential wheel lock
  • Upper control box protection cover and tool tray in plastic ultra-solid material
  • Dual load capacity 500 lbs (2 persons) - 990 lbs (3 persons)
  • Standard modular large platform with swing door entry gate
  • Basket compensation ± 10°
  • AC power to the platform 110 / 220 V
  • Swing out engine tray
  • Tilt / load alarm and light
  • Flashing drive beacon
  • Travel alarm
  • Hourmeter
  • Electric pump system and emergency descent
  • 12 V battery / electrical control system
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box)
  • Towing hooks
  • 3D jib
  • Non-marking tires
  • Air line to the platform
  • Lateral swing door entry gate (Standard on US machines)
  • On-board hydraulic generator
  • Biodegradable hydraulic oil
  • Hydraulic oil cooler
  • Hydraulic oil in tank and circuit for warm countries
  • Cap with key for diesel tank
  • Glazier pack
  • Cold weather kit
  • Pipe cradle
  • Automatic overspeed air shutdown valve (electric one-way valve, flame arrestor, spark arrestor)
  • Worklight
