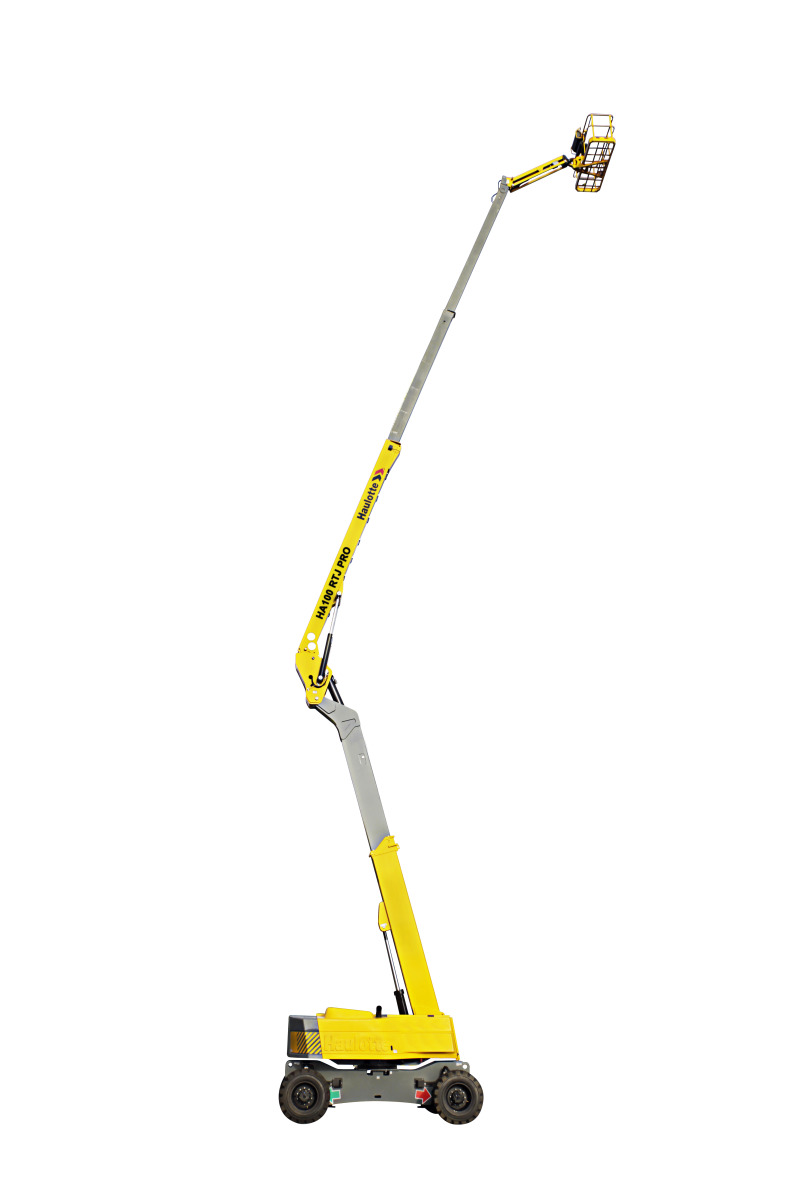

Internal combustion engines articulating boomsHA100 RTJ PRO
- Outstanding rough terrain driving features
- Unrestricted working envelope with maximum outreach
- Oscillating axle
- Differential wheel lock
- 95 seconds to full height thanks to fully proportional controls and simultanous boom functions
- Optimized serviceability
- Fully modular platform for quick and easy repairs
- Easy access to all components
- Self-diagnosis tool integrated to the lower control box
- Reliable and safe
- Optional Haulotte Activ’Shield Bar 2.0
- Rigid boom construction
Working height | 103 ft 9 in |
Platform height | 97 ft 9 in |
Horizontal outreach | 70 ft 10 in |
Up and over height | 37 ft 3 in |
Lift capacity | 550 lb (2 pers.) |
Platform size | 8 ft x 3 ft |
Length | 38 ft 5 in |
Width | 8 ft 4 in |
Height - stowed | 9 ft 2 in |
Vertical jib rotation | 140° (+ 70 / - 70) |
Platform rotation | 180° (+ 90 / - 90) |
Turntable rotation | 360° continuous |
Tailswing | 10 ft 10 in |
Wheelbase | 11 ft 6 in |
Ground clearance | 15 in |
Tilt alarm | 5 ° |
Drive speed | 0.3 - 3.1 mph |
Gradeability | 40 % |
Tires | 445 / 65-22.5 |
Engine | Deutz, 55 kW, Turbo, Tier 4 |
Weight | 44,321 lb |
Length - transport | 29 ft 2 in |
Width - with extended axles | 10 ft 10 in |
Height - transport | 12 ft 4 in |
Below ground reach | 18 ft 1 in |
Outside turning radius - extended axle | 18 ft 10 in |
Maximum wind speed rating | 37 mph |
- Haulotte Activ’Shield Bar 2.0
- Universal telematics plug
- 4 wheel drive and 4 wheel steer
- Front oscillating axle
- 2 extendable axles
- Proportional controls
- 4 simultaneous movements
- Differential wheel lock
- Upper control box protection cover and tool tray in plastic ultra-solid material
- Standard modular large platform with swing door entry gate
- AC power to the platform
- Basket compensation ± 10°
- Swing out engine tray
- Tilt / load alarm and light
- Flashing beacon
- Travel alarm
- Hourmeter
- Electric pump system and emergency descent
- 12 V battery / electrical control system
- Engine pre-heater with light indicator
- Low fuel level indicator (upper control box)
- Towing hooks
- Air line to platform
- Lateral swing door entry gate (standard on US machines)
- On-board hydraulic 3.5 kW generator
- Biodegradable hydraulic oil
- Hydraulic oil cooler
- Hydraulic oil in tank and circuit for warm countries
- Cap with key for diesel tank
- Cold weather kit
- Pipe cradle
- Glazier pack
- 55 W platform worklight
