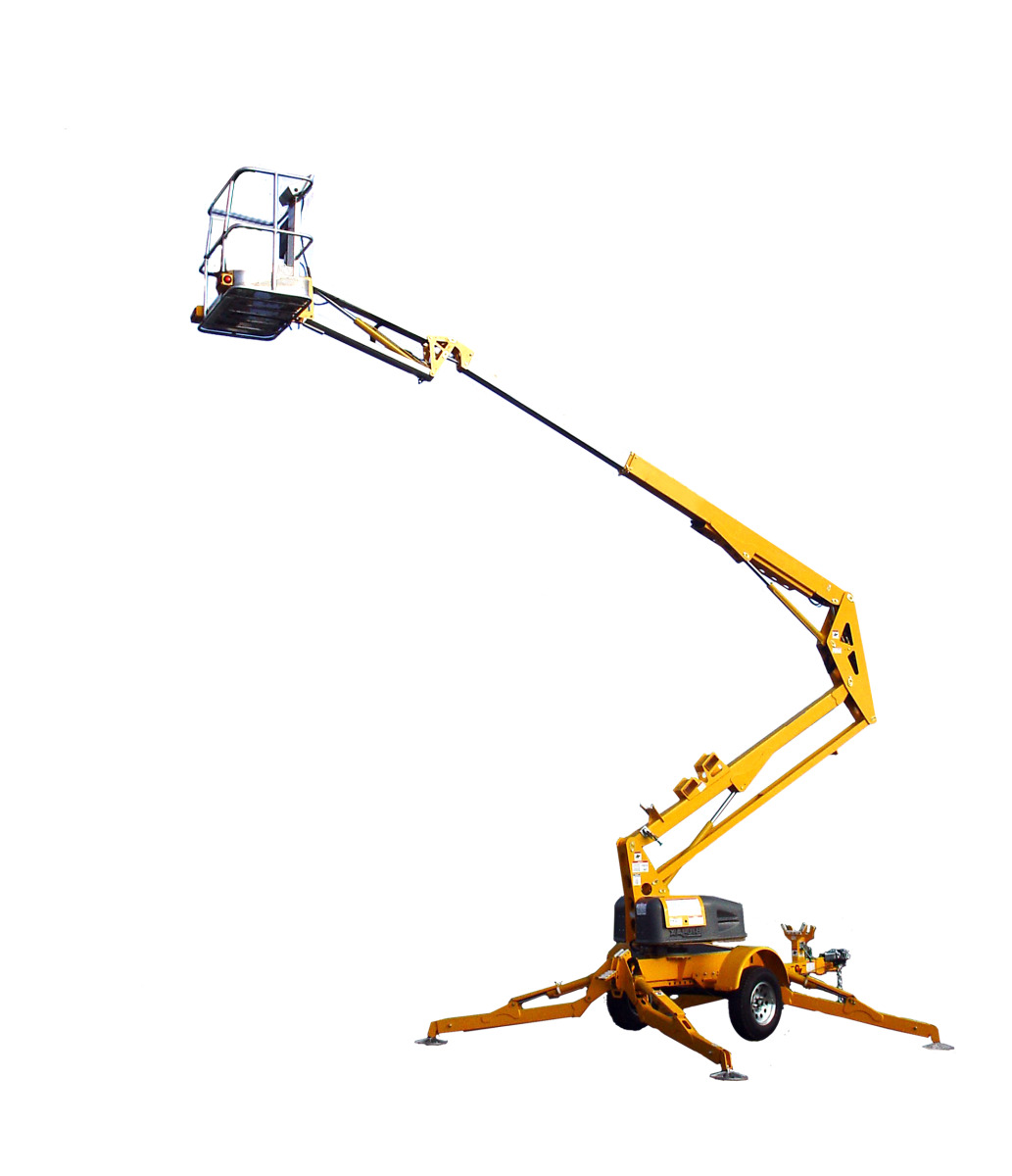

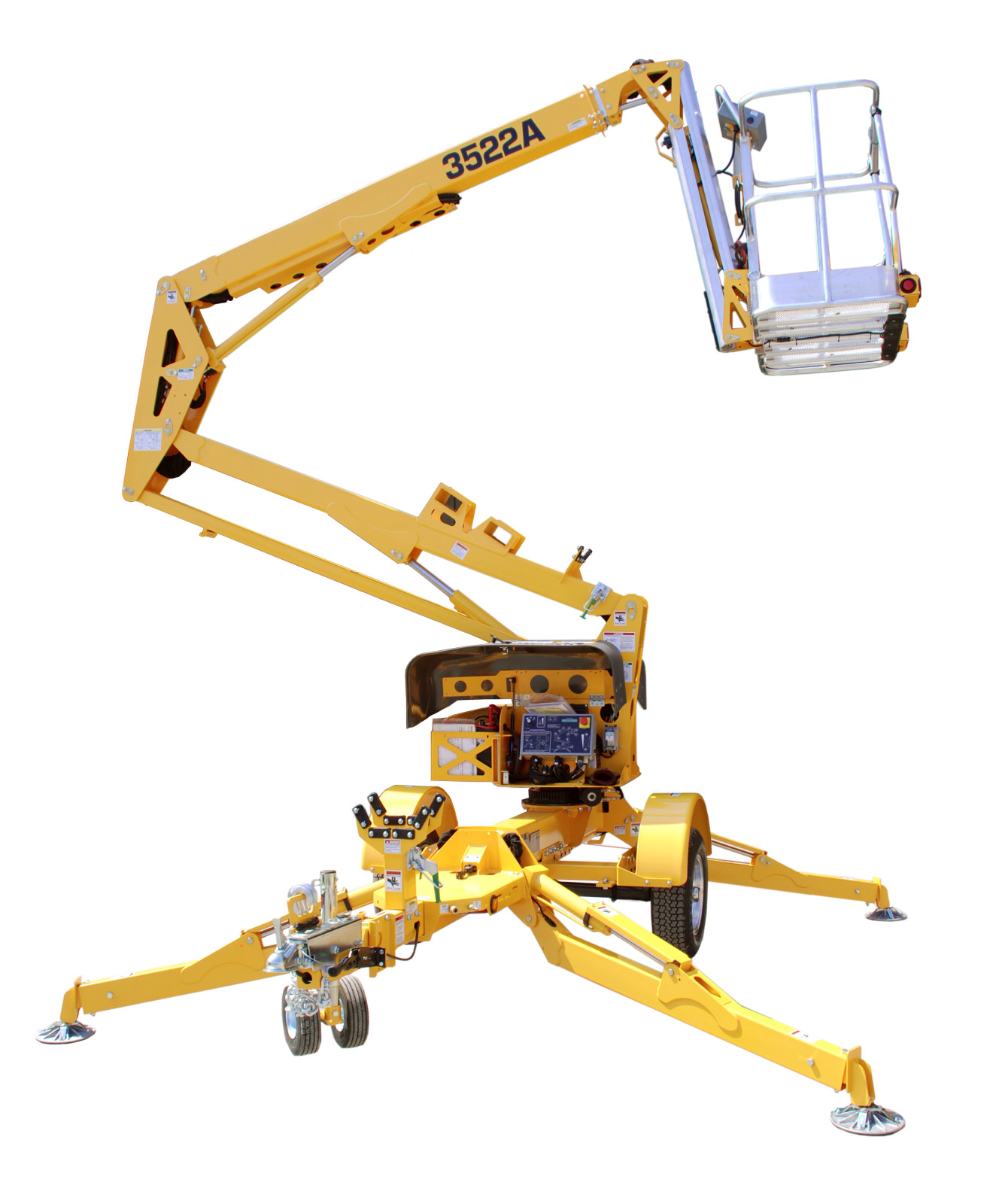

Articulated & telescopic trailers3522 A
- Exceptional productivity
- Safe elevation on slopes up to 12.5 degrees
- 100% Battery powered with optional generator for extended duty cycles
- Superior combination of industry leading capacity and outreach
- Air / water lines and 110V GFI protected power to the platform
- Low maintenance
- Electronic controls simplify operation and minimize hydraulic hoses
| Working height | 41 ft 9 in |
| Platform height | 35 ft 9 in |
| Horizontal outreach (from centerline) | 22 ft 6 in |
| Horizontal outreach (from edge of footpad) | 17 ft 5 in |
| Up and over height | 19 ft |
| Lift capacity | 500 lb |
| Length - stowed | 16 ft 3 in |
| Width stowed | 5 ft 6 in |
| Height stowed | 6 ft 8 in |
| Platform size | 4 ft 1 in x 2 ft 9 in |
| Turntable rotation | 350° non-continuous |
| Jib - length | 4 ft 3 in |
| Jib - Vertical Motion | 150° (+70 / - 80) |
| Tow speed rating | 65 mph |
| Leveling capability | 12.5 ° |
| Tire size | ST 225 / 75 D15 |
| Power source | 4 x 6 V 245 amp-hr |
| Tongue weight (no options) | 245 lb |
| Weight (no options) | 3,400 lb |
| Widest Point | 11 ft 10 in |
| Widest Point | 12 ft 2 in |
- Hydraulic outriggers
- Integrated forklift pockets
- Inboard 25 amp charger
- Air and water line to platform
- Easy to use controls
- 110V GFI protected outlet to platform and base
- Automatic leveling system and self-leveling platform
- Hour meter and battery condition indicator
- Tilt alarm/sensor
- Hydraulic surge brakes (trailer)
- Spare tire and mounting kit
- DC / Gas hybrid
- Manual platform rotator - 120° stop point to stop point
- Flashing beacon
- Flourescent tube caddy
- Tool tray
- Electric brakes (trailer)
