Presentation
- Boost your productivity
- Extend your duty cycles
- Operate anytime anywhere with zero emission
- Work safely
Specifications
Boost your productivity
- Oscillating axle and 4-wheel steering for more agility (PRO model)
- Haulotte Extra Reach : additional load and tilt capacity up to 771 lb (3 person) and 6° (optional)
Extend your duty cycles
- Fast charging thanks to removable Range Extender (option compatible with other PULSEO machines)
- Multiple and fast charging solutions adapted to all worksite situations
- More than one day of assured duty cycle in complete electric mode
Operate anytime anywhere with zero emission
- Versatile use: indoor / outdoor on all types of worksites
- Silent and clean operations
- Full electric drive
Work safely
- Haulotte Activ'Shield Bar : anti-crushing system (standard on PRO model)
- Haulotte Activ'Lighting System: load and unload the machine in low visibility conditions (standard on PRO model)
- Transport handle to ensure the operator is safe while loading and unloading (optional)

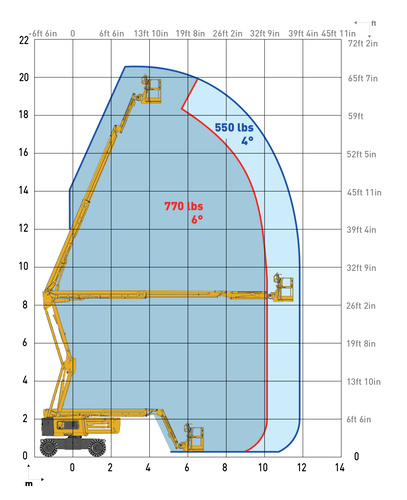

| Working height | 66 ft 8 in |
| Platform height | 60 ft 8 in |
| Horizontal outreach | 39 ft 1 in |
| Up and over clearance | 27 ft 11 in |
| Lift capacity | 550 lbs - option 770 lbs |
| Lift capacity | 0 |
| Lift capacity - outside | 0 |
| Platform size | 8 ft x 3 ft |
| Length | 28 ft 2 in |
| Length - transport | 0 ft |
| Width | 8 ft |
| Height - stowed | 8 ft 1 in |
| Height - transport | 9 ft 9 in |
| Length - transport | 20 ft 3 in |
| Height - transport | 9 ft 9 in |
| Tailswing | 16 in |
| Vertical jib rotation | 0 ° |
| Horizontal jib rotation | 0 |
| Platform rotation | 180° ( -90° / +90°) |
| Turntable rotation | 355° non continuous |
| Wheelbase | 8 ft 2 in |
| Ground clearance | 11 in |
| Tilt alarm | 4° - option 6° |
| Drive speed | 0.3 - 3 mph |
| Maximum wind speed rating | 28 mph |
| Gradeability | 40 % |
| Tires - solid, rough terrain | 3 ft x 1 ft |
| Turning radius - outside | 17 ft |
| Tires | 0 |
| Batteries | 0 |
| Weight | 21 587 lb |
| Batteries | 72 V - 390 Ah (C20) |
| Range extender | 0 |
| Ground clearance - mini | 11 in |
| Ground clearance - maxi | 15 in |
| Max ground pressure per wheel | 14.5 daN/cm² |
- Haulotte Activ’Screen
- Haulotte Activ’Shield Bar (standard model PRO)
- Haulotte Activ'Lighting System (standard PRO model)
- Haulotte Activ'Energy Management: smart system
- Modular basket 1.8 x 0.8 m
- 4-wheel drive and 2-wheel steering (standard E model)
- 4-wheel drive and 4-wheel steering (standard PRO model)
- Proportional and simultaneous movements
- Universal telematic plug
- Drive orientation assist
- AGM battery pack 72V - 390Ah
- Front oscillating axle (standard PRO model)
- 355° non-continuous rotation
- Haulotte Extra Reach
- REX 5.2 kW - Stage 5 (+ 550 lbs)
- Non-marking tires
- 360° continuous rotation (optional on PRO model only)
- Pipe cradle
- Glazier kit
- USB plug
- Accelerated charger 380V
- Transport handle
- Sherpal telematics subscription
- Swing door entry gate
- Shipyard package
- Haulotte Extra Reach
- FASTN, universal and active anchorage
- Working light
- Cold weather package
- Biodegradable hydraulic oil
- Lithium-Ion maintenance-free batteries
- User Drive Assist
- Circuit breaker
