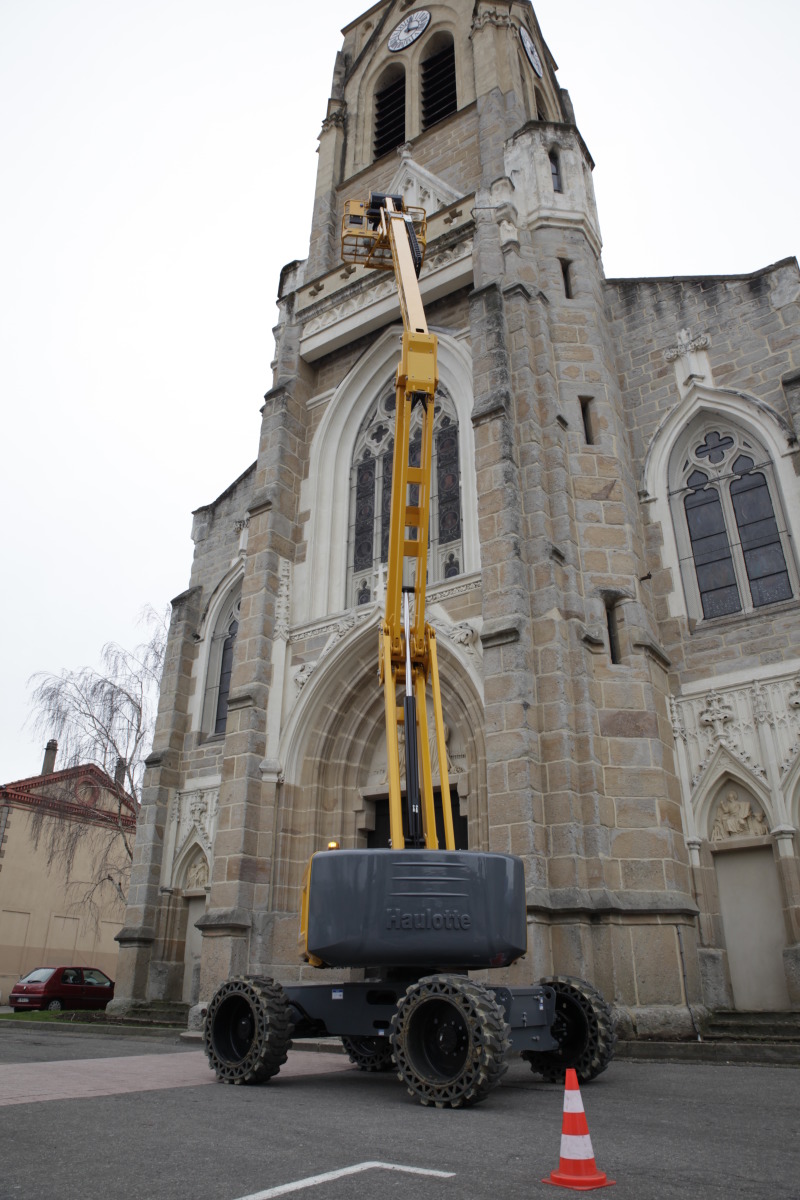

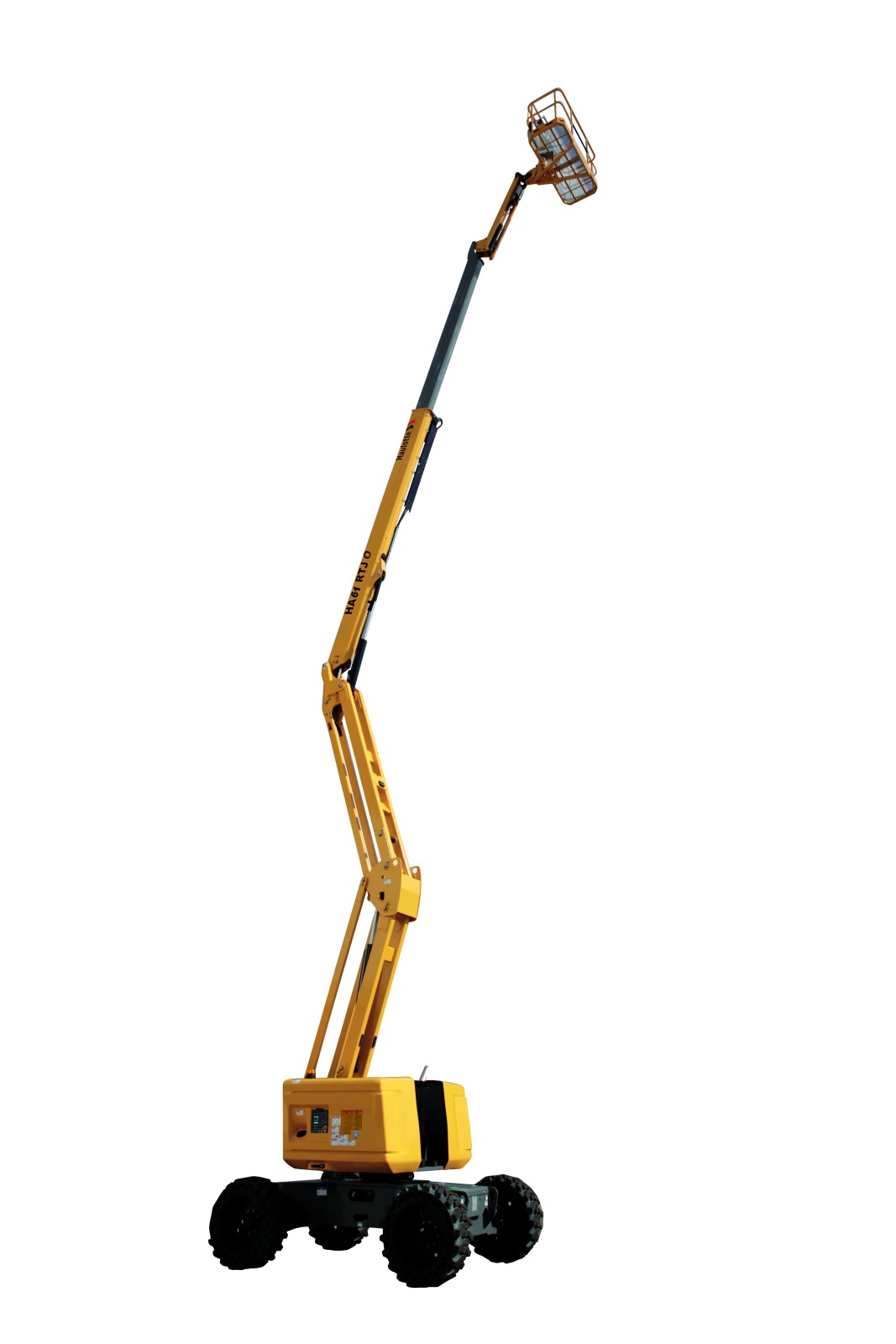

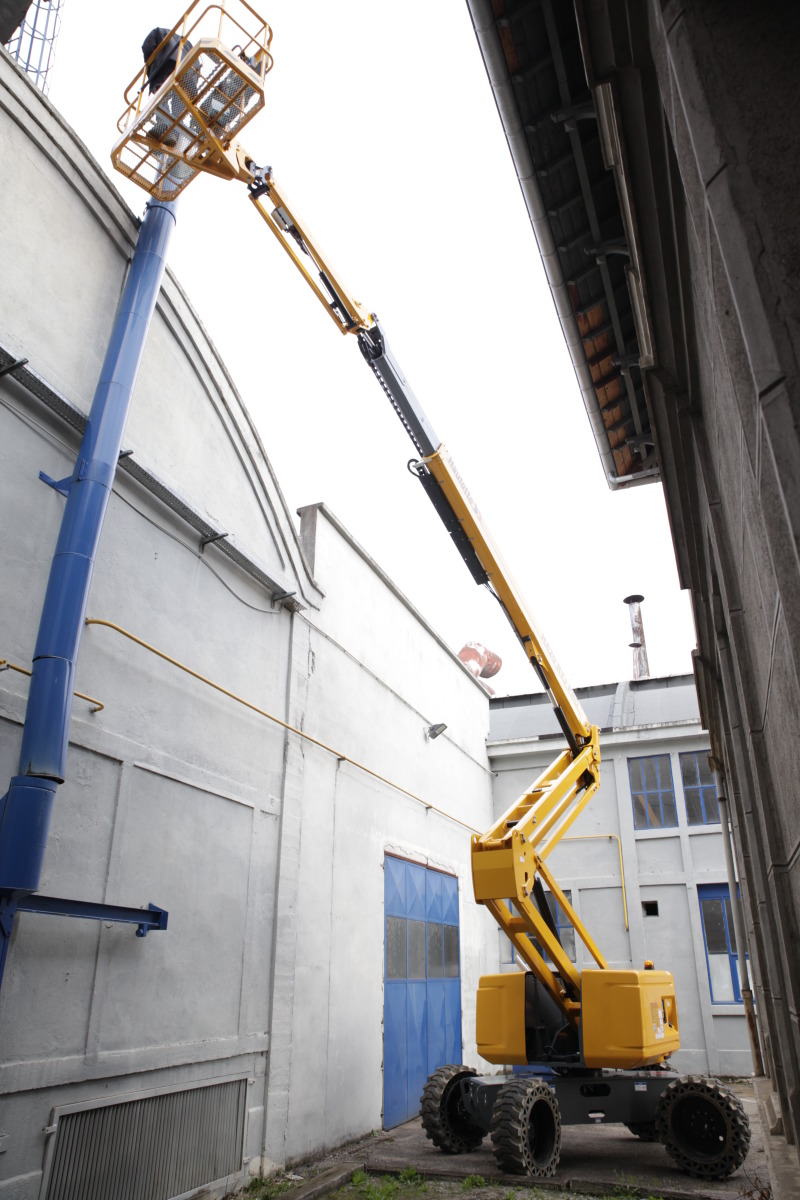

Internal combustion engines articulating boomsHA61 RTJ O

  • Internal combustion engines articulating booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building work
  • Finishing
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Performance & ease of use
  • Rapid lifting speed. Full height in 48 sec.
  • Industry leading working envelope with a 40 ft outreach
  • Fully proportional and simultaneous movements
  • Simple to load and transport
  • Durable & robust
  • Rugged hoods with ergonomic handles
  • Long lasting structural design
  • Minimized total cost of ownership
  • Haulotte Activ'Screen (on board diagnostics)
  • Haulotte Stop Emission System: automatically turns engine on / off
  • Exclusive modular basket with upper control box cover and tool tray
  • Easy access to all components

Compare

Working height 67 ft 7 in
Platform height 61 ft
Horizontal outreach 40 ft
Up and over height 27 ft 7 in
Lift capacity 500 lb (2 pers.)
Platform size 8 ft x 2 ft 7 in
Length 28 ft 10 in
Width 7 ft 11 in
Height - stowed 8 ft 3 in
Vertical jib rotation 140° (+ 70° / - 70°)
Platform rotation 180° (+ 90° / - 90°)
Turntable rotation 360 ° continuous
Tailswing 5.6 in
Wheelbase 8 ft
Ground clearance 15 in
Tilt alarm 5 °
Drive speed 0.5 - 3.1 mph
Gradeability 45 %
Turning radius - outside 13 ft 1 in
Engine Kohler, 36,5kW, 66 hp (T4f)
Weight 20,500 lb
Length - transport 21 ft 4 in
Height - transport 9 ft 7 in
Tires - solid rough terrain 33.5 x 13.4 in
Maximum wind speed rating 28 mph

  • Haulotte Activ'Screen
  • Haulotte Stop Emission System
  • Universal telematics plug
  • 4 wheel drive, 2 wheel steer
  • Front oscillating axle increases stability on uneven ground
  • 4 simultaneous movements for maximum productivity
  • Permanent limited slip differential
  • Upper control box protection cover and tool tray in ultra-solid plastic
  • Modular large basket 8 ft x 3 ft quick and easy to repair
  • AC power to platform 110 / 230 V
  • Swing out engine tray for simplified maintenance
  • Sound and light alarm for tilt and load
  • Rotating beacon
  • Travel alarm
  • Hour meter
  • 12 V battery / electrical control system
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box)
  • Electric pump system and emergency descent

  • Haulotte Activ'Shield Bar 2.0 (Standard in North America)
  • Non-marking tires
  • Large modular basket (Standard in North America)
  • Power to platform 110 / 230 V (Standard in North America)
  • Air-line to platform 0.25 in. inside diameter
  • Lateral swing door entry gate (Standard in North America)
  • Hydraulic generator Dynaset 3.5 Kw
  • Biodegradable hydraulic oil
  • Cold weather kit : 14°F / 77°F
  • Hot weather kit: hydraulic oil cooler + hydraulic oil
  • Glazier pack
  • Flashing light
  • 55 W working light
