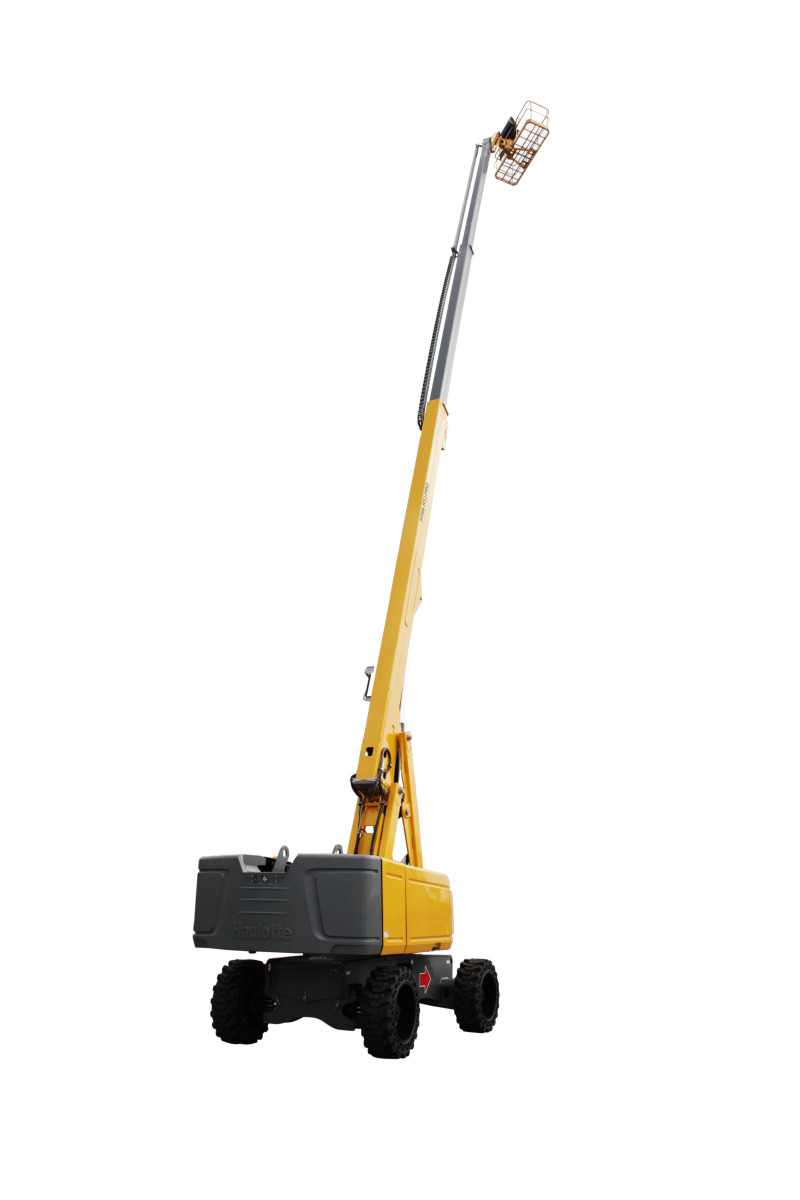

Telescopic boomsHT85 RTJ PRO

  • Telescopic booms
  • Diesel
  • Uneven ground
  • Outside use
  • Building works
  • Finishings
  • Landscaping
  • Maintenance
  • Performance & productivity
  • Industry leading horizontal outreach of 78 ft 3 in
  • Smooth and precise movements
  • Outstanding rough terrain capabilities
  • Dual load capacity 500 - 770 lb (optional)
  • Safety & comfort
  • Haulotte Activ’Shield Bar 2.0
  • Haulotte Activ'Lighting System for safe loading / unloading in low visibility conditions
  • Ultimate control & comfort is engineered to provide superior working-envelope efficiency
  • Robust boom design
  • Minimized Total Cost of Ownership
  • Haulotte Activ'Screen on-board diagnostic system
  • Haulotte Stop Emission System regulates engine run time, reducing fuel consumption, pollution, and noise
  • Modular platform, quick and easy to repair
  • Easy access to all components

Working height 91 ft
Platform height 85 ft
Horizontal outreach 78 ft 3 in
Lift capacity 500 lb (2 pers.) - option: 770 lb
Platform size 8 ft x 3 ft
Length - stowed 42 ft 1 in
Length - transport 32 ft 2 in
Width 8 ft 2 in
Height - stowed 9 ft 4 in
Height - transport 9 ft 9 in
- Vertical jib rotation - 133° (- 66° / + 67°)
- Platform rotation - 180° (+ 90° / - 90°)
Turret swing 360° continuous
Tailswing 60 in
Wheelbase 9 ft 2 in
Ground clearance 19 in
Tilt alarm 4 °
Drive speed 0.3 - 3.1 mph
Gradeability 45 %
Turning radius - outside 14 ft 3 in
Weight 39,900 lb
Jib length 6 ft
Engine Deutz 55.5 kW, 74 hp (t4f)
- Fuel tank - 32 gal
- Below grade reach - 9 ft 8 in
Tires - solid rough terrain 40.4 x 14.4 in
- Maximum wind speed rating - 28 mph
  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Stop Emission System
  • Haulotte Activ'Screen: on-board diagnostic
  • Haulotte Activ'Lighting System
  • Universal telematics plug
  • 4 wheel drive / 4 wheel steer
  • Oscillating axle
  • Smooth & proportional movements
  • Automatic wheel differential lock
  • Upper control box protection cover and tool tray in ultra-rugged composite
  • Large modular platform 8 ft x 3 ft
  • Drop bar entry gate
  • Basket rotation 180° (± 90°)
  • Swing-out engine tray for easy maintenance access
  • Sound and light alarm for tilt and load
  • Movement alarm and rotating beacon light
  • Non-marking tires
  • Dual load capacity 550 - 770 lb (2 persons)
  • 37 mph wind speed
  • 110 / 220 V power to platform
  • Air line to platform 1/2 in inside diameter
  • Lateral swing door entry gate
  • Hydraulic generator 3.5 kW or 6.5 kW
  • Work light package
  • Hydraulic oil cooler
  • Cold weather package / arctic weather kit
  • Pipe cradle kit
  • Glazier kit
  • Motion flashing warning light
  • Battery circuit breaker
