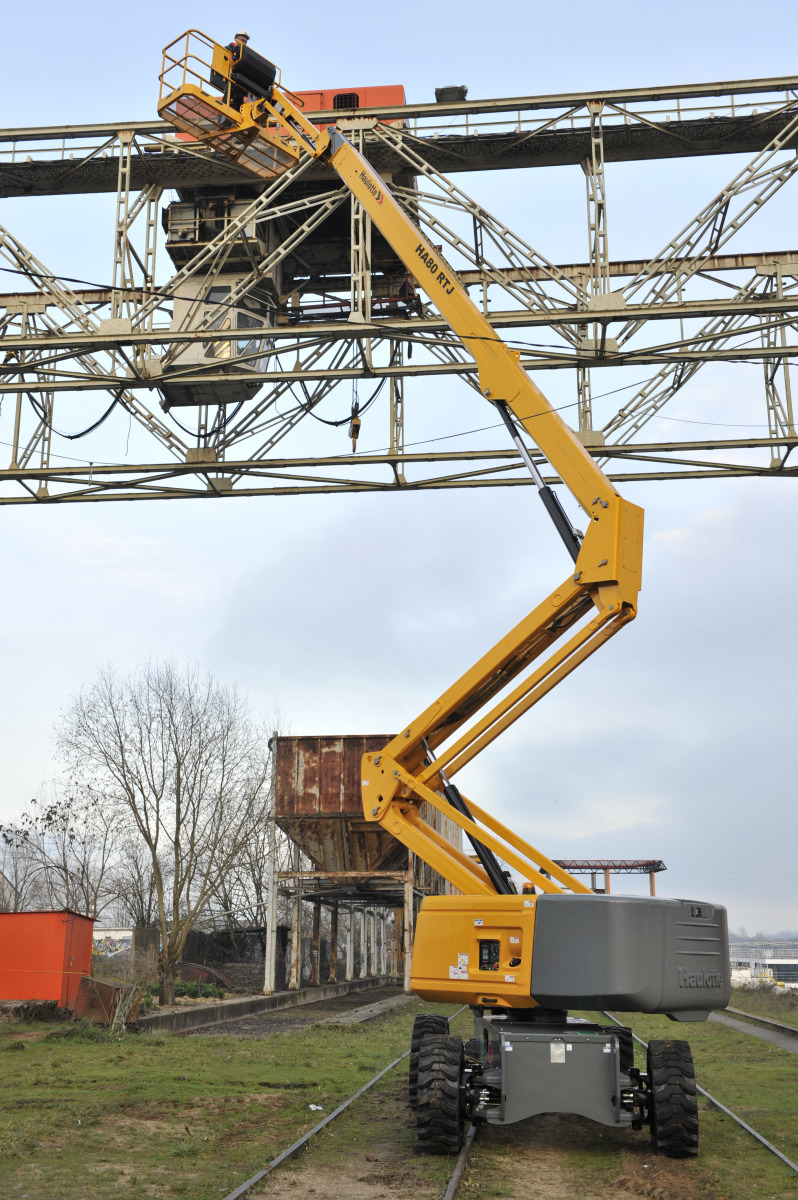

Internal combustion engines articulating boomsHA80 RTJ O

  • Internal combustion engines articulating booms
  • Diesel
  • Outside use
  • Building work
  • Finishing
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Performance & Productivity
  • Very good working envelope
  • Vertical arm rise up
  • Outstanding RT capabilities
  • basket load capacity 550 lbs
  • Dual load 550-770 lbs (option)
  • Safety and Comfort
  • Fully proportional and simultaneous movements
  • Activ' Lighting System safe load (option)
  • Haulotte Activ' Shield Bar 2.0 (option)
  • Minimized Total Cost of Ownership
  • Haulotte Activ' Screen on board diagnostic tool
  • Haulotte Stop Emission System which automatically turns the engine off & on
  • Easy access to all components
  • Modular basket quick and easy to repair

Compare

Working height 86 ft 1 in
Platform height 80 ft 1 in
Horizontal outreach 57 ft 5 in
Up and over clearance 30 ft 6 in
Lift capacity 550 lb (2 pers.) - option: 770lb
Platform size 8 ft x 3 ft
Length 38 ft 8 in
Width 8 ft 2 in
Height - stowed 9 ft 9 in
Vertical jib rotation 133° (-65°/+68°)
Platform rotation 180°
Turntable rotation 360°continuous
Tailswing 30 in
Wheelbase 9 ft 2 in
Ground clearance 19 in
Tilt 4°
Drive speed 3.1 mph
Gradeability 45 %
Turning radius - outside 21 ft 6 in
Power source Kubota 48.6kW (66hp), T4f
Weight 34,100 lb
Storage / transport length 30 ft 10 in
Storage / transport height 9 ft 9 in
Hydraulic tank capacity 37 gal
Fuel tank capacity 21 gal
Tires - solid rough terrain 40.4 x 14.4 in
Maximum wind speed rating 28 mph
Ground clearance - mini 0 ft
Ground clearance - maxi 0 ft

  • Embedded diagnostic system Haulotte Activ' Screen on lower control box, with color screen
  • Haulotte Stop Emission System : automatic engine stop system
  • Universal telematics plug
  • 4 wheel drive, 2 wheel steer
  • Front oscillating axle
  • 4 simultaneous movements
  • Automatic differential wheel lock
  • Upper control box cover
  • Tool tray
  • Modular standard basket 8 ft x 3 ft
  • Drop bar entry gate
  • AC power to platform (110 / 230V)
  • Swing out engine tray
  • Tilt / load alarm and light
  • Rotating beacon
  • Travel alarm
  • Electric pump system and emergency descent
  • 12V battery
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper & lower control box)

  • Activ' Lighting System, Safe load
  • Activ' Shield Bar 2.0
  • Non-marking tires
  • Dual load capacity 550 / 770 lbs
  • 60 km / h wind speed
  • Power to platform (female plug in the basket)
  • Air line to platform
  • Hydraulic generator 3.5 kW
  • Biodegradable hydraulic oil
  • Hydraulic oil cooler
  • Cold weather kit / Arctic weather kit
  • Pipe cradle
  • Glazier pack
  • Working light
  • Battery circuit breaker
