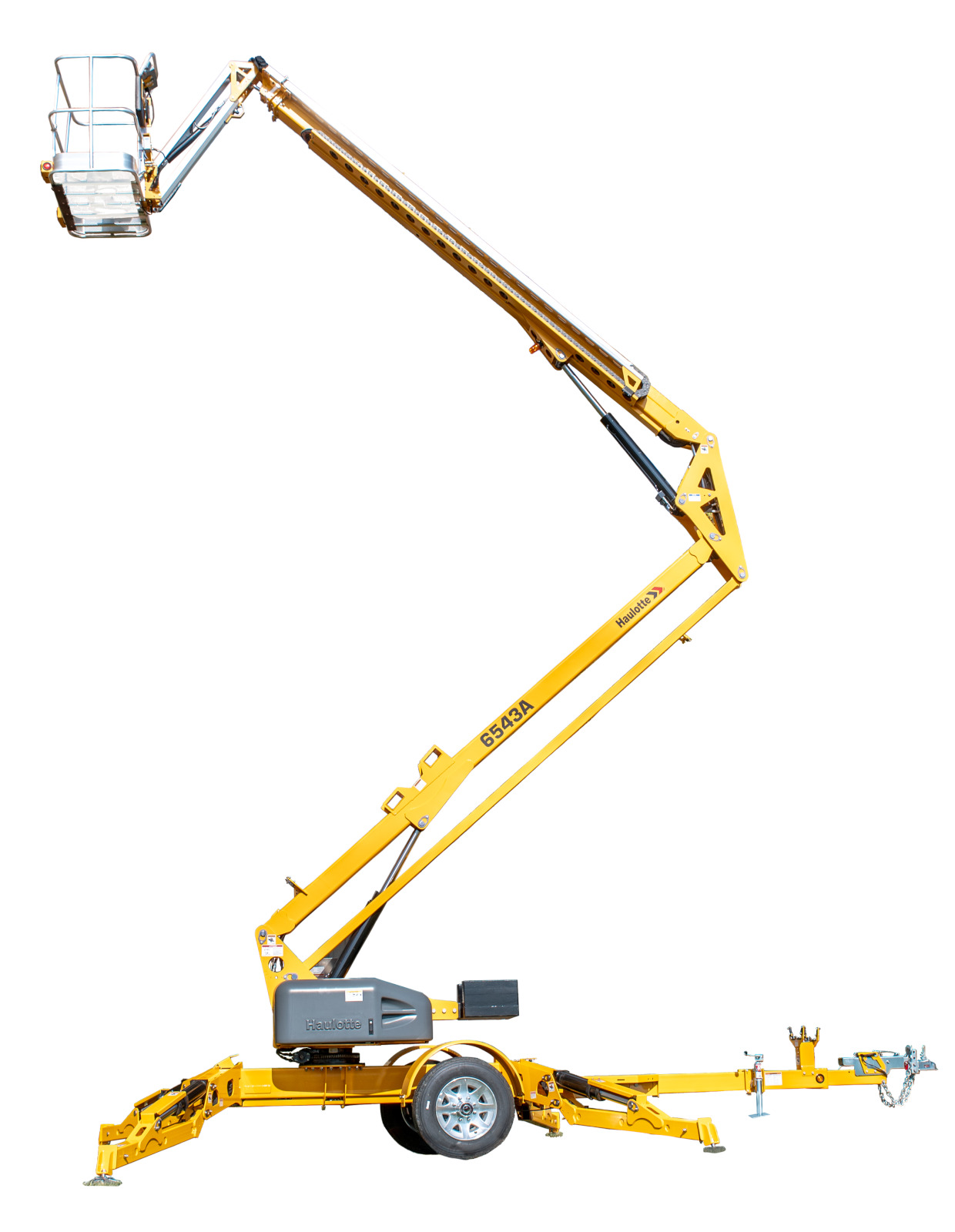

Articulated & telescopic trailers6543 A

  • Articulated & telescopic trailers
  • Electric
  • Rough terrain
  • Inside and outside use
  • Logistic / Retail / Industry
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Ease of installation
  • Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Exceptional productivity
  • Safe elevation on slopes up to 12.5 degrees
  • 100% Battery powered with optional generator for extended duty cycles
  • Superior combination of industry leading capacity and outreach
  • Air / water lines and 110V GFI protected power to the platform
  • Low maintenance
  • Electronic controls simplify operation and minimize hydraulic hoses

Working height 71 ft
Platform height 65 ft
Horizontal outreach (from centerline) 43 ft
Horizontal outreach (from edge of footpad) 37 ft
Up and over height 24 ft 2 in
Lift capacity 500 lb
Length - stowed 24 ft
Width stowed 5 ft 11 in
Height stowed 7 ft
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 170° (+70 / -80)
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size 215/75R 17.5
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 550 lb
Weight (no options) 7,700 lb
Widest Point 14 ft 8 in
Widest Point 15 ft
  • Hydraulic outriggers
  • Integrated forklift pockets
  • Inboard 25 amp charger
  • Air and water line to platform
  • Easy to use controls
  • 110V GFI protected outlet to platform and base
  • Automatic leveling system and self-leveling platform
  • Hour meter and battery condition indicator
  • Tilt alarm/sensor
  • Hydraulic surge brakes (trailer)
  • Spare tire and mounting kit
  • DC / Gas hybrid
  • Manual platform rotator - 120° stop point to stop point
  • Flashing beacon
  • Flourescent tube caddy
  • Tool tray
