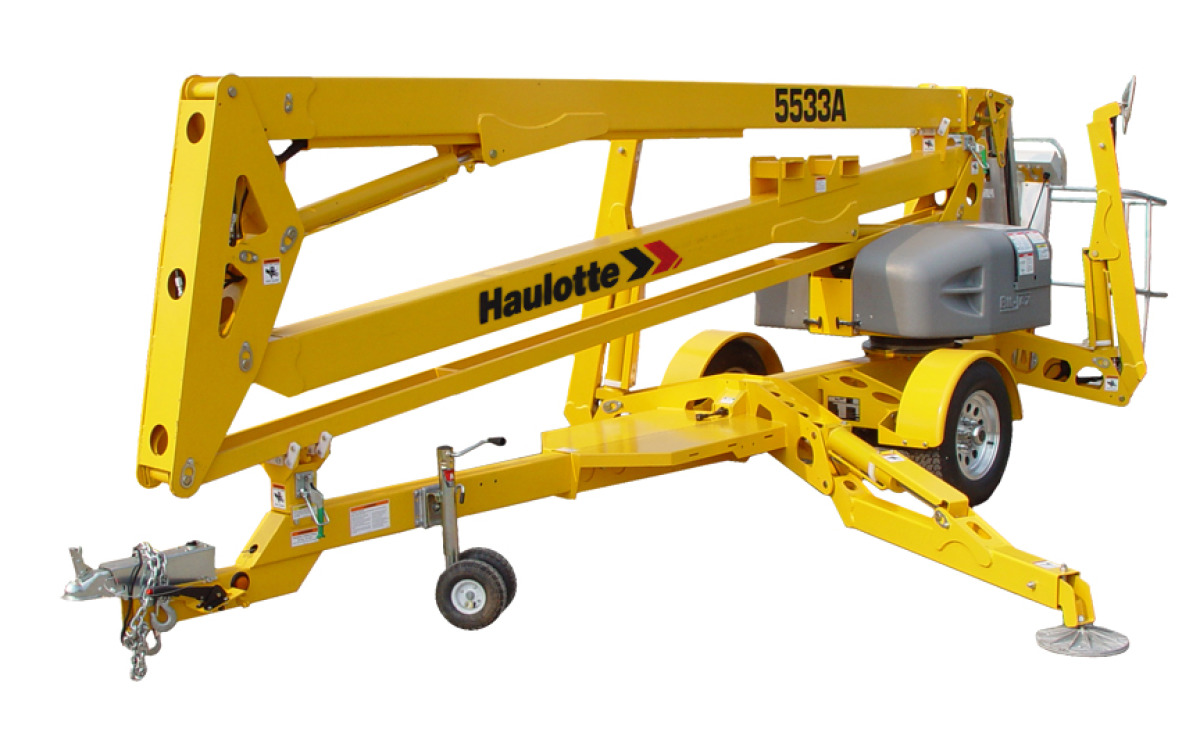

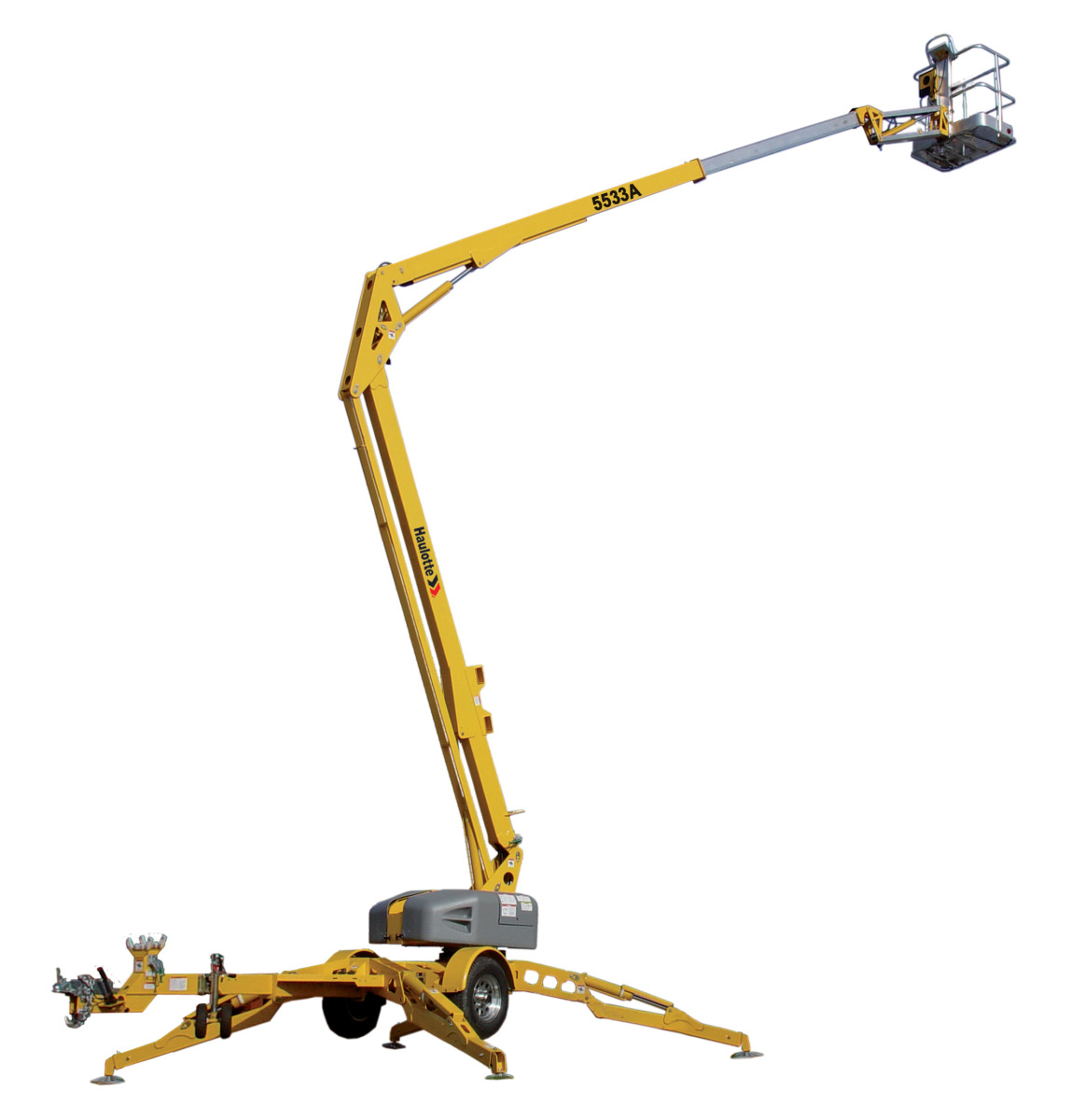

Articulated & telescopic trailers5533 A

  • Articulated & telescopic trailers
  • Electric
  • Rough terrain
  • Outside use
  • Landscaping
  • Logistic / Retail / Industry
  • Maintenance and restoration
  • Sporting and other events
  • Ease of installation
  • Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Exceptional productivity
  • Safe elevation on slopes up to 12.5 degrees
  • 100% Battery powered with optional generator for extended duty cycles
  • Superior combination of industry leading capacity and outreach
  • Air / water lines and 110V GFI protected power to the platform
  • Low maintenance
  • Electronic controls simplify operation and minimize hydraulic hoses

Working height 61 ft 3 in
Platform height 55 ft 3 in
Horizontal outreach (from centerline) 33 ft 5 in
Horizontal outreach (from edge of footpad) 27 ft 4 in
Up and over height 23 ft 1 in
Lift capacity 500 lb
Length - stowed 23 ft 8 in
Width stowed 5 ft 7 in
Height stowed 6 ft 9 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150° (+ 70 / - 80)
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225 / 75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 335 lb
Weight (no options) 4,800 lb
Widest Point 14 ft 8 in
Widest Point 15 ft
  • Hydraulic outriggers
  • Integrated forklift pockets
  • Inboard 25 amp charger
  • Air and water line to platform
  • Easy to use controls
  • 110V GFI protected outlet to platform and base
  • Automatic leveling system and self-leveling platform
  • Hour meter and battery condition indicator
  • Tilt alarm/sensor
  • Hydraulic surge brakes (trailer)
  • Spare tire and mounting kit
  • DC / Gas hybrid
  • Manual platform rotator - 120° stop point to stop point
  • Flashing beacon
  • Flourescent tube caddy
  • Tool tray
  • Electric brakes (trailer)
