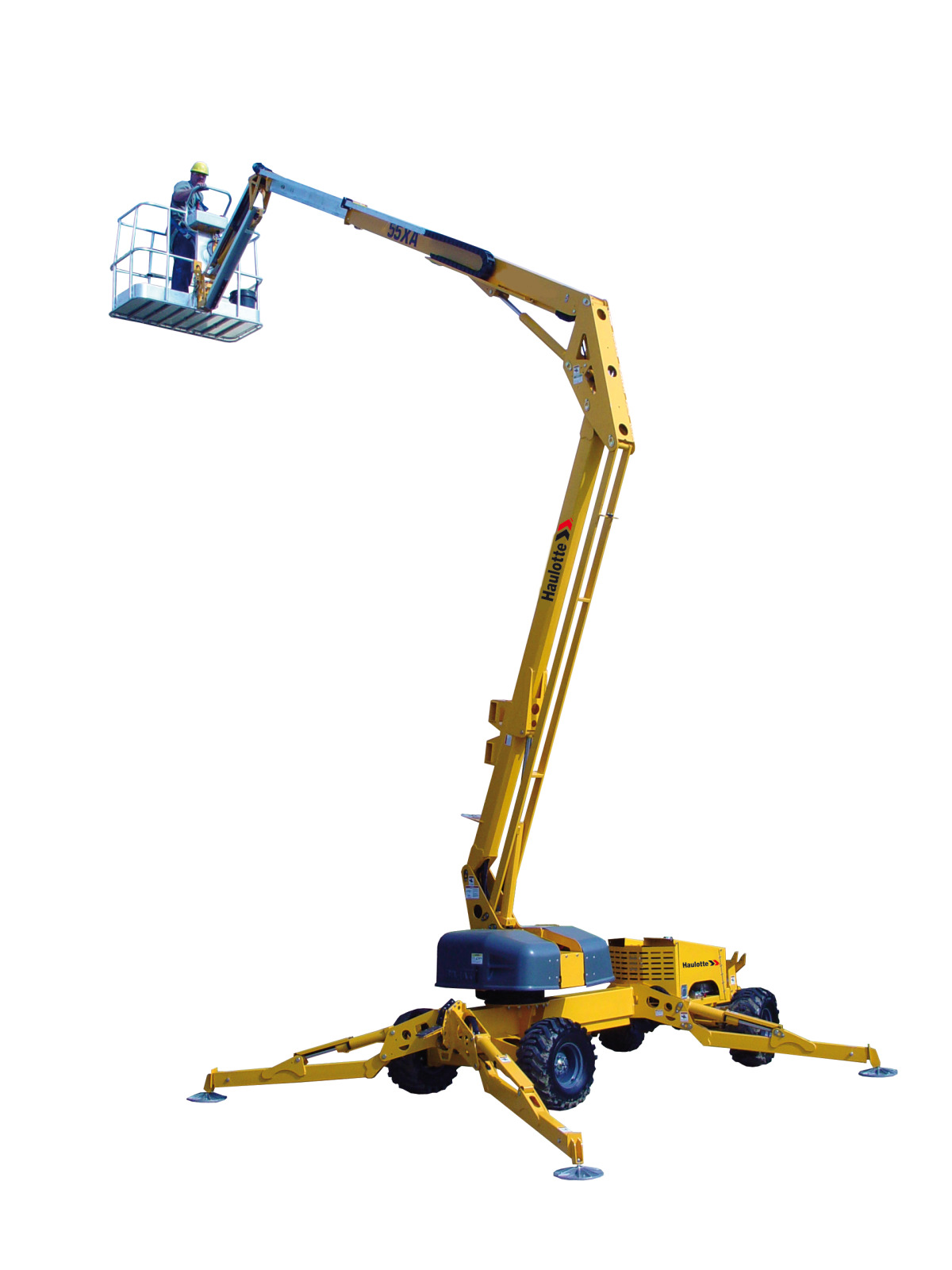

Lightweight self-propelled booms55 XA

  • Lightweight self-propelled booms
  • Diesel
  • Building work
  • Landscaping
  • Maintenance and restoration
  • Sporting and other events
  • Outside use
  • Access like never before
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • High performance 4WD and light weight provide access to places larger and heavier machines cannot go
  • Easily transported on a trailer with no commercial driver’s license requirement
  • Dual power source (DC / Gas) allows for indoor/outdoor use
  • Optimum performance
  • 4,000 Watt generator
  • Air / water lines to platform
  • 110V GFI protected power to the platform

Compare
Working height 61 ft 3 in
Platform height 55 ft 3 in
Horizontal outreach (from centerline) 33 ft 5 in
Horizontal outreach (from edge of footpad) 27 ft 4 in
Up and over height 23 ft 1 in
Lift capacity 500lbs
Length - stowed 21 ft 2 in
Width stowed 5 ft 8 in
Height stowed 6 ft 9 in
Wheelbase 10 ft 1 in
Ground clearance 10 in
Platform size 5 ft x 2 ft 6 in
Outrigger footprint 13 ft 11 in x 12 ft 9 in
Turntable rotation 350° non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150° (+70 / -80)
Drive speed 4.75 mph (max)
Gradeability 45 %
Turning radius - inside (2WS) 11 ft 4 in
Turning radius - inside (4WS) 6 ft 8 in
Tire size 26 x 12 Bar lug
Batteries 4 x 6V 260 Amp-hr
Engine 31 hp gas Kubota
Weight 6,000 lbs
  • Hydraulic outriggers
  • Automatic leveling system (leveling capability 12.5°)
  • Self-leveling platform
  • Air and water lines to platform
  • 110V GFI protected outlet to platform and base
  • 4,000 W generator
  • Hour meter
  • Battery condition indicator
  • Dual power system
  • Easy to use controls with logically positioned buttons
  • Tilt alarm / sensor
  • Spring applied hydraulic released brakes
  • Inboard 25 amp charger
  • Bar lug tires
  • 4 wheel steering (standard on 55XA)
  • Platform rotator (manual)
  • Flashing beacon
  • Flourescent tube caddy
  • Tool tray
  • Turf tires
  • Diesel - 21.6 Hp Kubota
  • Dual fuel - 32.5 Hp gas / liquid propane Kubota
  • Non-marking bar lug tires
